Description
Ceratizit Article Number: 10475315
Ceratizit Material Number: 1047531500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

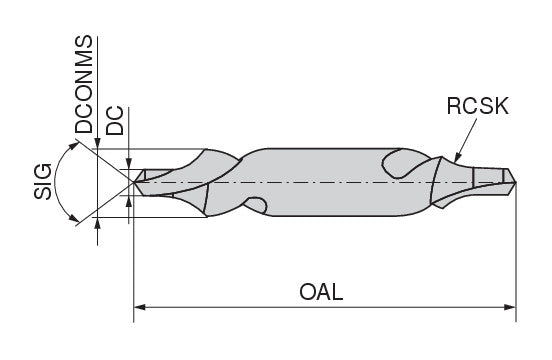

| Properties | ||
|---|---|---|
| Name | Ceratizit N-ZB.3,15.L.DIN333-R Centre drills, 333, Form 10475315 | |
| EDP # | 0726863 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 18.0 g |
| Cutting diameter / DC | 0.1240" | 3.150 mm |
| Mounting spigot diameter / DCONMS h8 | 0.3150" | 8.000 mm |
| Overall length / OAL | 1.9685" | 50.000 mm |
| Radius countersunk / RCSK | 0.3150" | 8.000 mm |
| Hand / HAND | L | |
| Coating name / Grade (Ceratizit) / COATN | blank | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
