Description
Ceratizit Article Number: 10709080
Ceratizit Material Number: 1070908000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

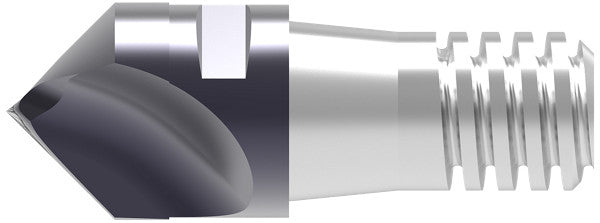

| Name | Ceratizit MUC.NC-A90°.KLG6.8,00.R. TI1050 MultiChange Spot Drill 10709080 | |
| EDP # | 0727007 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 0.5 oz | 13.4 g |

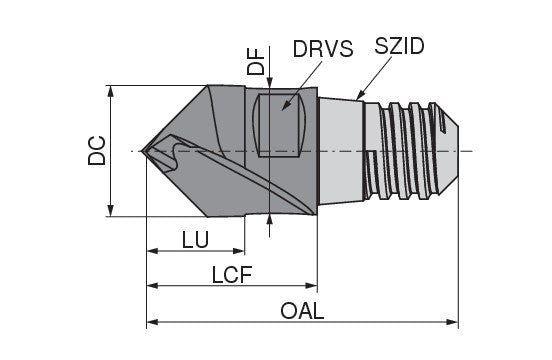

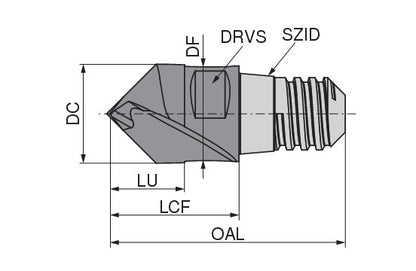

| Cutting diameter / DC | 0.3150" | 8.000 mm |
| nominal size / SZID | 06 | |
| Usable length / LU | 0.2362" | 6.000 mm |
| Flange diameter / DF | 0.3071" | 7.800 mm |
| Length chip flute / LCF | 0.4331" | 11.000 mm |
| Overall length / OAL | 0.8031" | 20.400 mm |
| Drive size / DRVS | 0.2362" | 6.000 mm |
| Torque maximum / TQX | 5 Nm | |
| Depth of cut maximum | 0.1575" | 4.000 mm |
| torque moment | 5 Nm | |
| Flute count / NOF | 2 | |
| Coating name / Grade (Ceratizit) / COATN | Ti1050 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
