Ceratizit MUC.NC-A90°.KLG12.16,00.R.TI1050 CoreLine Spot Drills MultiChange 10709160 (0727010)
Ceratizit MUC.NC-A90°.KLG12.16,00.R.TI1050 CoreLine Spot Drills MultiChange 10709160 (0727010)
Couldn't load pickup availability
Ceratizit Article Number: 10709160
Ceratizit Material Number: 1070916000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

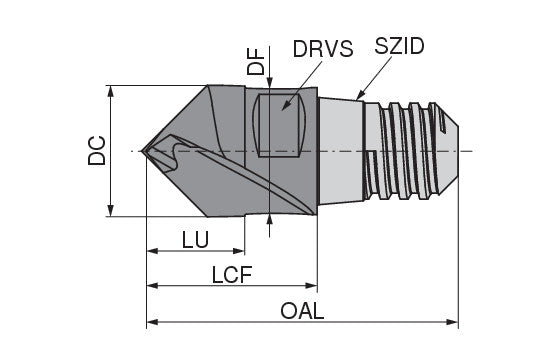

| Properties | ||
|---|---|---|
| Name | Ceratizit MUC.NC-A90°.KLG12.16,00.R.TI1050 CoreLine Spot Drills MultiChange 10709160 | |
| EDP # | 0727010 | |
| Weight (1 pc.) | 2.0 oz | 56.6 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | spot drill | |
| Cutting diameter / DC | 0.6299" | 16.000 mm |
| nominal size / SZID | 12.0000" | 304.800 mm |
| Usable length / LU | 0.4724" | 12.000 mm |
| Flange diameter / DF | 0.6220" | 15.800 mm |
| Length chip flute / LCF | 0.7874" | 20.000 mm |
| Overall length / OAL | 1.4685" | 37.300 mm |
| Drive size / DRVS | 0.5118" | 13.000 mm |
| Torque maximum / TQX | 20 Nm | |
| Depth of cut maximum | 0.3150" | 8.000 mm |
| torque moment | 20 Nm | |
| Flute count / NOF | 2.0000" | 50.800 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti1050 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
