Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Edger' line is for chamfering and deburring.
'C' form tools are for chamfering and deburring, available in a large array of tip angles.
Tool Properties | ||
---|---|---|

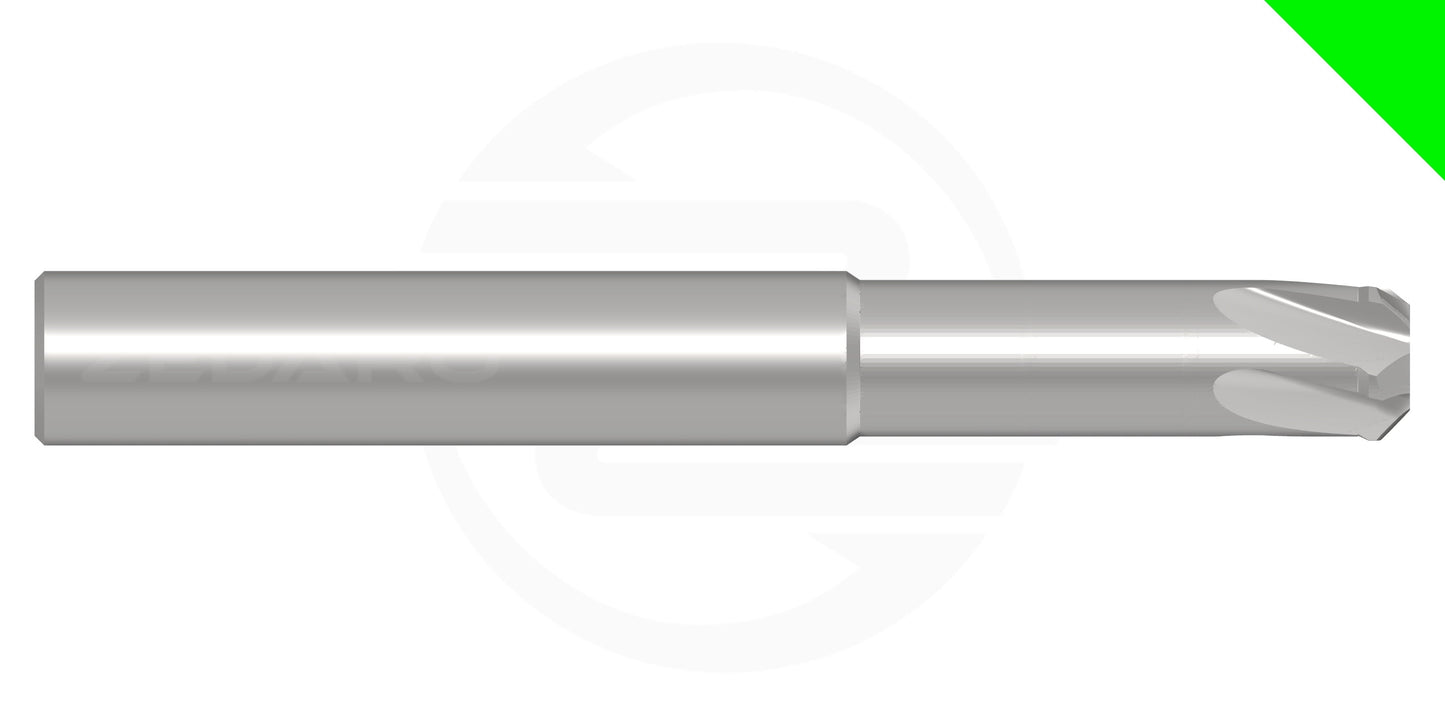

Name | GRNEDGERR-12.00C90.0-0727447-N40CG1 (0727447) | |
EDP # | 0727447 | |
Material | Wrought Aluminum | Application | Finish Chamfer/Deburr (Edger) |
Form | Chamfer Tool | |
Cutting Diameter | 0.4724" | 12.000 mm |
Angle per Side | 3.5433" | 90.000 mm |
Taper per Side | 90.00° | |
Length of Cut | 0.0787" | 2.000 mm |
Reach | 1.5748" | 40.000 mm |
Minimum Extension | 1.6" | 41.0 mm |
Maximum Extension | 3.0" | 76.2 mm |
Shank Diameter h6 | 0.5000" | 12.700 mm |
Overall Length | 4.0" | 101 mm |
Cutting Edges | 5 |
