Zedaro GRNCHIRPR-9.000Y3.98-0727859-K28CE1 (0727859)
Zedaro GRNCHIRPR-9.000Y3.98-0727859-K28CE1 (0727859)
Couldn't load pickup availability
Zedaro UID: 0727859
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

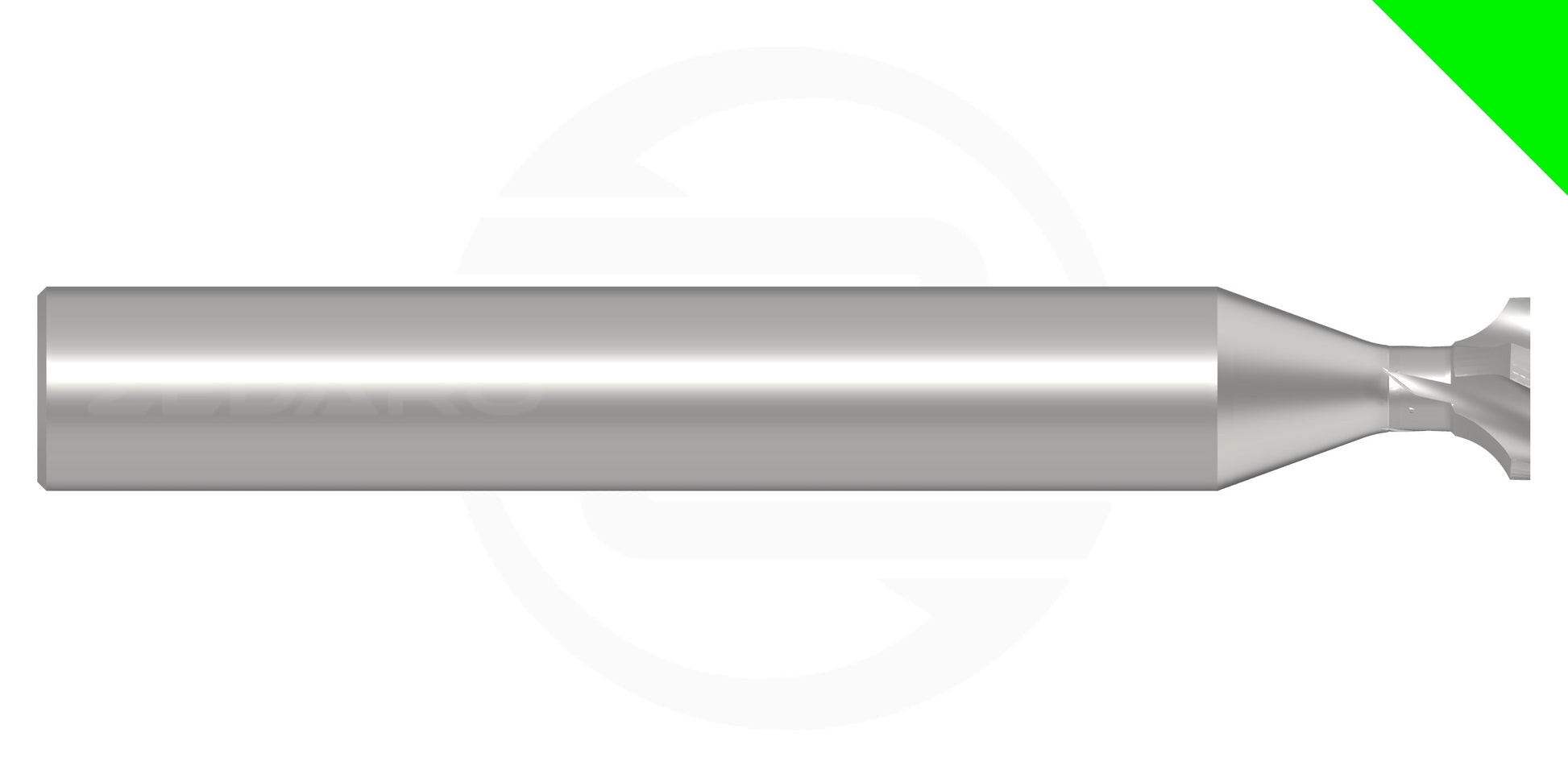

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNCHIRPR-9.000Y3.98-0727859-K28CE1 | |
| EDP # | 0727859 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 3.0 oz | 87.0 g |
| Concave Radius | 0.3543" | 9.000 mm |
| Tip Diameter | 0.1567" | 3.980 mm |
| Application | Finish Flank Milling <20k RPM (Chirper) | |
| Form | Concave Circle Segment | |
| Shank Diameter (h5) | 0.3937" | 10.000 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.1496" | 3.800 mm |
| Overall Length | 2.8000" | 71.120 mm |
| Reach | 0.2559" | 6.500 mm |
| Minimum Extension | 0.5709" | 14.500 mm |
| Maximum Extension | 2.0118" | 51.100 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Chirper' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
- 'Y' form tools use a concave circle segment to generate convex geometry quickly by emulating a large and inverted effective radius.
- This is a custom design which does not follow standard proportions.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
