Description
Note that this item has been discontinued and will not be re-stocked.
Material Number: 5215504000
Article Number: 52155040
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

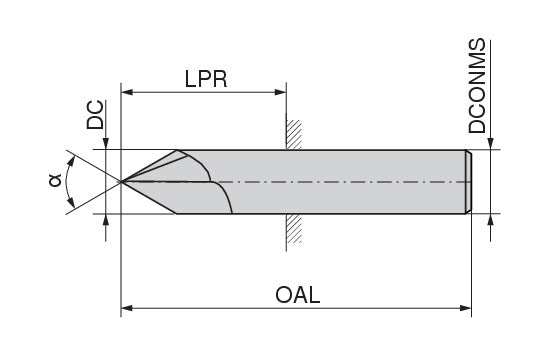

| Properties | ||
|---|---|---|
| Name | Ceratizit N.EF.4,0.120°.Z4.HA TI1000 SOLID CARBIDE NC DEBURRING CUTTER 5215504000 (0728404) | |
| EDP # | 0728404 | |
| Weight | 0.3 oz | 9.7 g |
| Cutting diameter DC h6 | 0.1575 inch | 4 mm |
| Depth of cut maximum APMX | 0.0453 inch | 1.15 mm |
| Overall length OAL | 1.9685 inch | 50 mm |
| Protruding length LPR | 0.8661 inch | 22 mm |
| Mounting spigot diameter DCONMS h6 | 0.1575 inch | 4 mm |
| Profile angle PRFA | 120 ° | |
| Peripheral effective cutting edge count ZEFP | 4 | |
