Description
Note that this item has been discontinued and will not be re-stocked.
Material Number: 5215903000
Article Number: 52159030
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

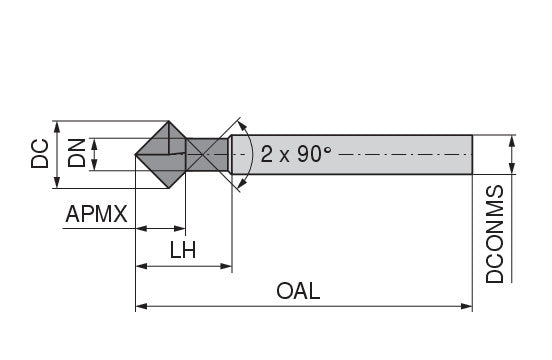

| Properties | ||
|---|---|---|
| Name | Ceratizit N.EF.3,0.0°.Z4.HA TI1000 SOLID CARBIDE NC DEBURRING CUTTER 5215903000 (0728416) | |
| EDP # | 0728416 | |
| Weight | 0.4 oz | 11.3 g |
| Cutting diameter DC | 0.1181 inch | 3 mm |
| Depth of cut maximum APMX | 0.0787 inch | 2 mm |
| Neck Diameter DN | 0.0866 inch | 2.2 mm |
| Head length LH | 0.4724 inch | 12 mm |
| Overall length OAL | 2.9528 inch | 75 mm |
| Protruding length LPR | 1.8504 inch | 47 mm |
| Mounting spigot diameter DCONMS h5 | 0.1575 inch | 4 mm |
| Profile angle PRFA | 90 ° | |
| Peripheral effective cutting edge count ZEFP | 4 | |
