Description
Note that this item has been discontinued and will not be re-stocked.
Material Number: 5215906000
Article Number: 52159060
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

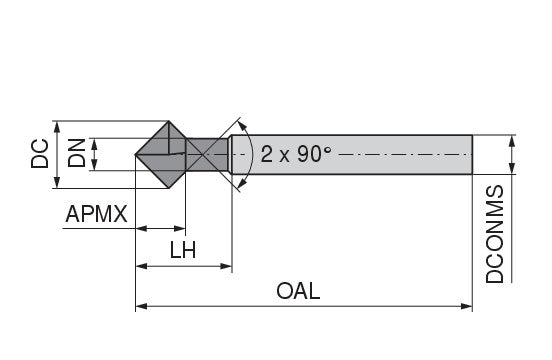

| Properties | ||
|---|---|---|
| Name | Ceratizit N.EF.6,0.0°.Z4.HA TI1000 SOLID CARBIDE NC DEBURRING CUTTER 5215906000 (0728418) | |
| EDP # | 0728418 | |
| Weight | 1.0 oz | 36.9 g |
| Cutting diameter DC | 0.2362 inch | 6 mm |
| Depth of cut maximum APMX | 0.1575 inch | 4 mm |
| Neck Diameter DN | 0.1535 inch | 3.9 mm |
| Head length LH | 0.748 inch | 19 mm |
| Overall length OAL | 3.937 inch | 100 mm |
| Protruding length LPR | 2.5197 inch | 64 mm |
| Mounting spigot diameter DCONMS h5 | 0.2362 inch | 6 mm |
| Profile angle PRFA | 90 ° | |
| Peripheral effective cutting edge count ZEFP | 4 | |
