Zedaro YELSTRIPR-2.000N0.60-0728561-G25AB1 (0728561)
Zedaro YELSTRIPR-2.000N0.60-0728561-G25AB1 (0728561)
Couldn't load pickup availability
Zedaro UID: 0728561
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

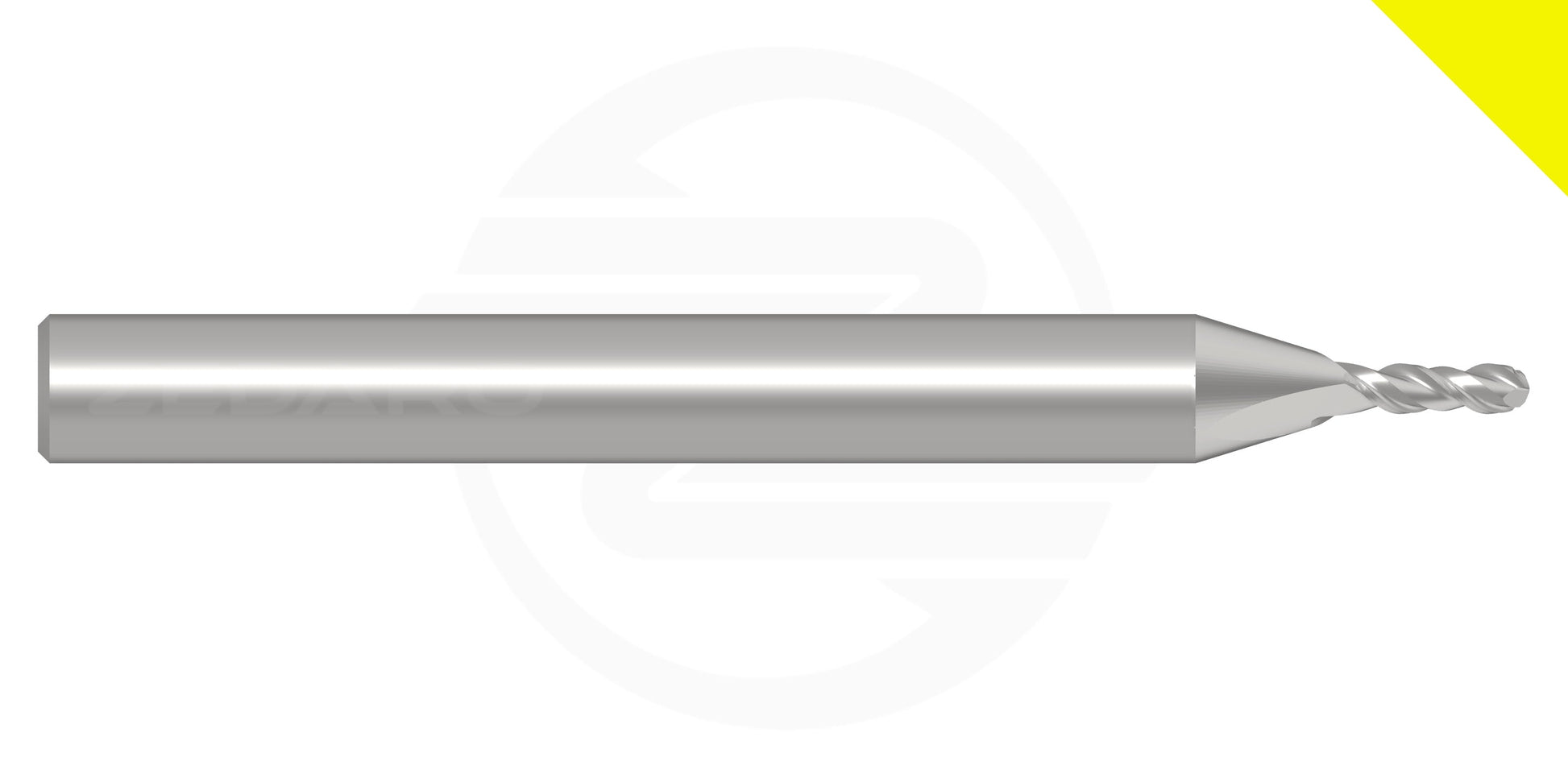

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro YELSTRIPR-2.000N0.60-0728561-G25AB1 | |
| EDP # | 0728561 | |
| Workpiece Material(s) | Stainless Steel (Yellow) | |
| Weight (1 pc.) | 1.0 oz | 31.0 g |
| Cutting Diameter | 0.0787" | 2.000 mm |
| Corner Size (45 deg.) | 0.0236" | 0.600 mm |
| Application | General Milling <20k RPM (Striper) | |
| Form | Corner Chamfered | |
| Shank Diameter (h6) | 0.2500" | 6.350 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.2323" | 5.900 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.5512" | 14.000 mm |
| Minimum Extension | 0.5512" | 14.000 mm |
| Maximum Extension | 2.0000" | 50.800 mm |
Product Features:
- The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
- The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
- 'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.
- This is a custom design which does not follow standard proportions.
