Description
Material Number: 5275306000
Article Number: 52753060
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

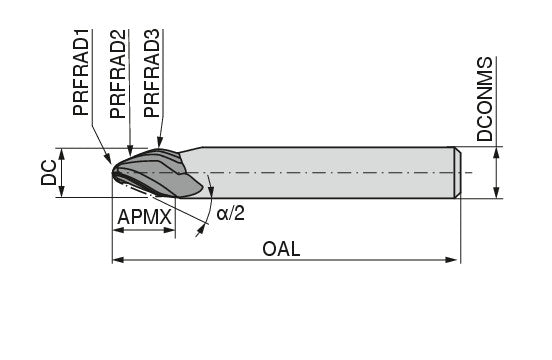

| Properties | ||
|---|---|---|
| Name | Ceratizit N.3D-F.SC.6.30°.Z3.1.250.3.HA.L APB72S 3D Finish - Taper shape 5275306000 (0728592) | |
| EDP # | 0728592 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 1.0 oz | 24.9 g |
| Cutting diameter DC | 0.2362 inch | 6 mm |
| Depth of cut maximum APMX | 0.374 inch | 9.5 mm |
| Protruding length LPR | 1.0236 inch | 26 mm |
| Overall length OAL | 2.4409 inch | 62 mm |
| Mounting spigot diameter DCONMS h6 | 0.2362 inch | 6 mm |
| Peripheral effective cutting edge count ZEFP | 3 | |
| Alpha/2 | 17.5 | |
| Profile radius 3 PRFRAD3 | 0.1181 inch | 3 mm |
| Profile radius 2 PRFRAD2 | 9.8425 inch | 250 mm |
| Profile radius 1 PRFRAD1 | 0.0394 inch | 1 mm |
Application & Properties:
Suitable Materials:
