Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Shredder' line is a general purpose high-speed roughing and finishing tool designed for machine tools capable of spindle speeds greater than 20K rpm.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

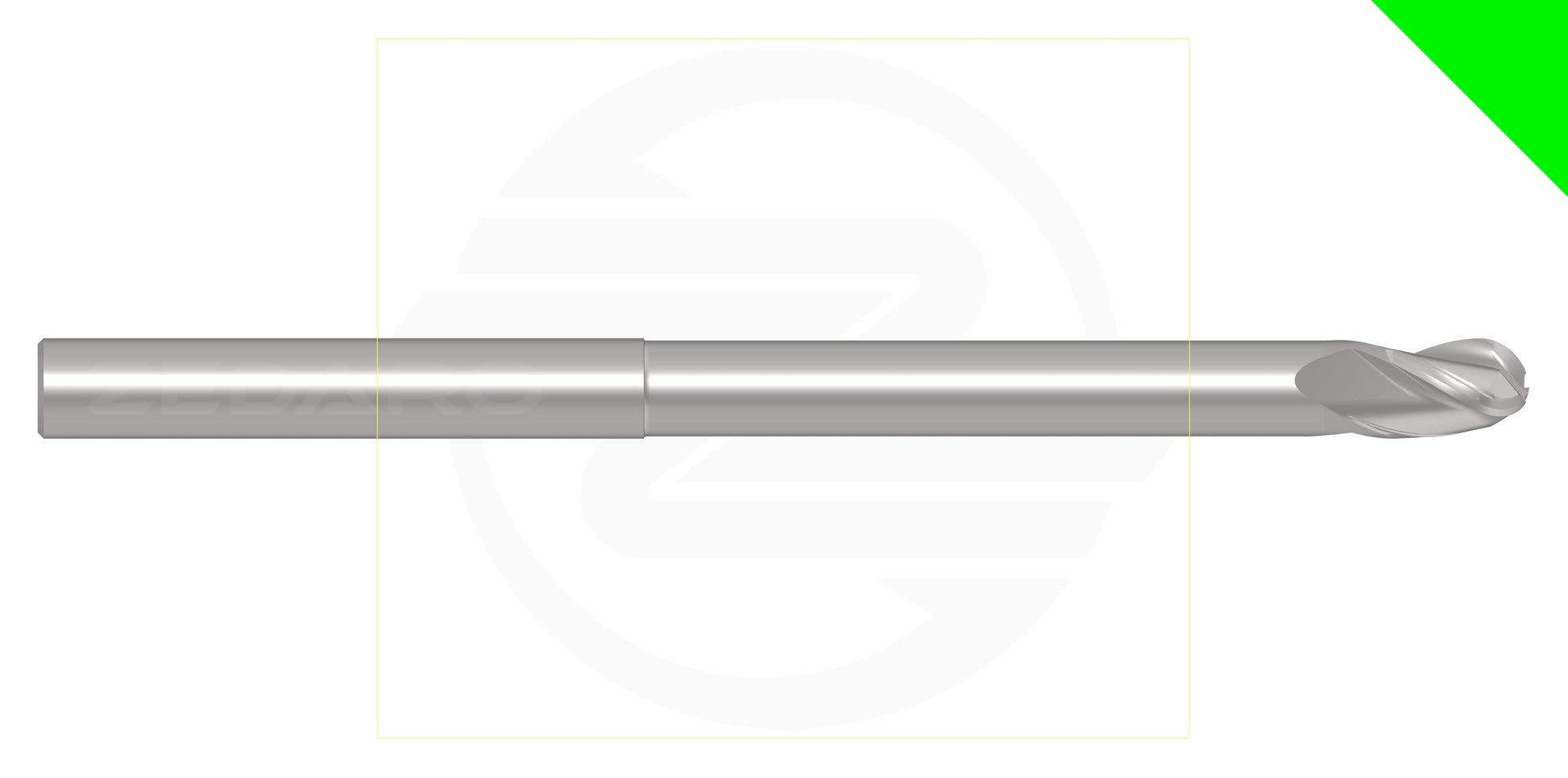

| Name | GRNSHREDR-6.000R3.00-47.6KES50.8-F35CG1 (0728601) | |
| EDP # | 0728601 | |
| Material | Wrought Aluminum | |
| Application | General Milling >20k RPM (Shredder) | |
| Form | End Mill - Ball | |
| Cutting Diameter | 0.2362" | 6.000 mm |
| Corner Radius | 0.1181" | 3.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.2835" | 7.200 mm |
| Reach | 1.8740" | 47.600 mm |
| Minimum Extension | 2.0" | 50.8 mm |
| Maximum Extension | 3.1" | 79.9 mm |
| Shank Diameter h6 | 0.2362" | 6.000 mm |
| Overall Length | 3.5" | 89 mm |
| Cutting Edges | 3 | |
