Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Chirper' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.
| Tool Properties | ||
|---|---|---|

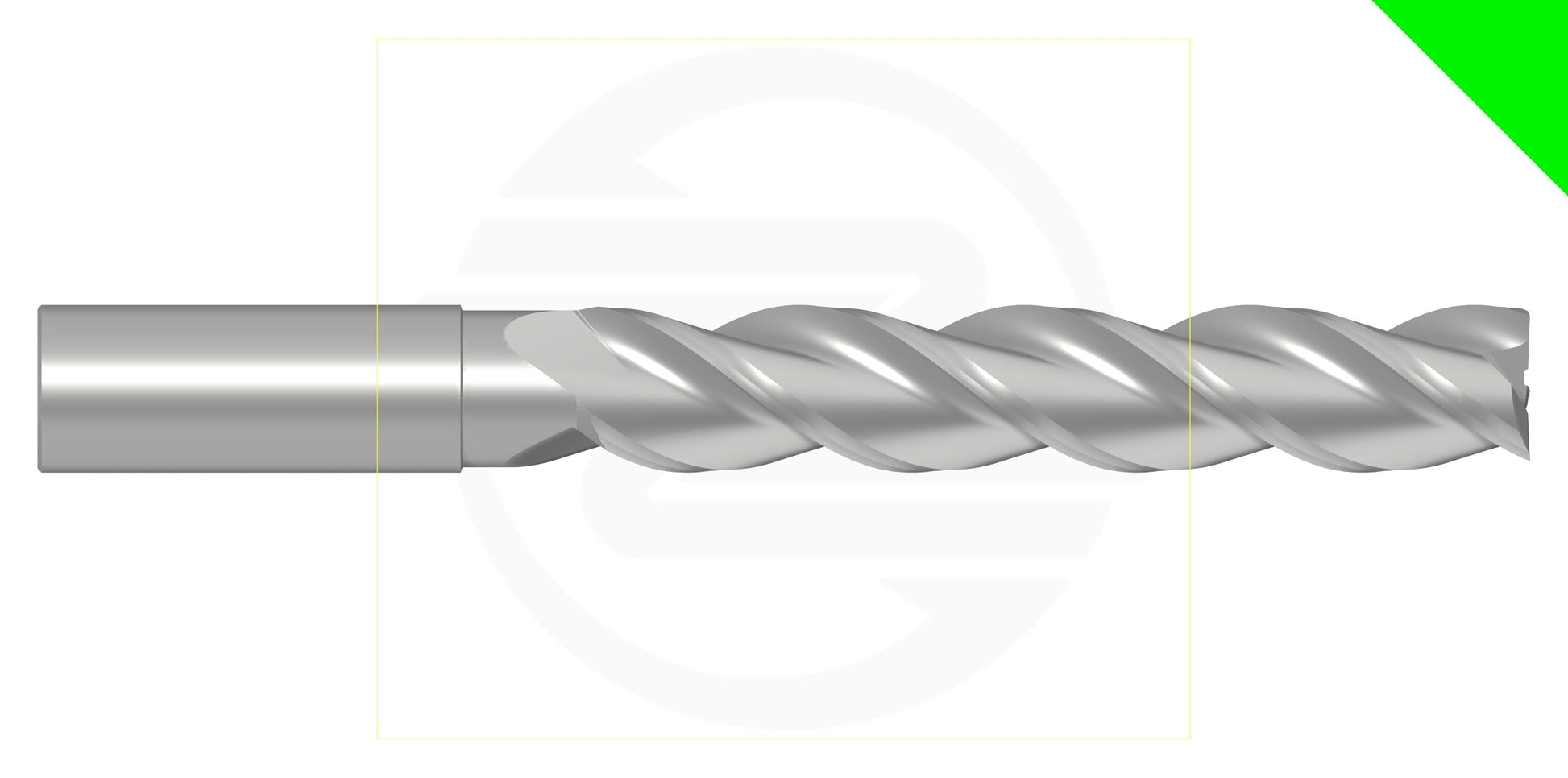

| Name | GRNCHIRPR-20.00N0.10-127.OST127.-U70CG1 (0728603) | |
| EDP # | 0728603 | |
| Material | Wrought Aluminum | |
| Application | Finish Flank Milling <20k RPM (Chirper) | |
| Form | Chamfered End Mill | |
| Cutting Diameter | 0.7874" | 20.000 mm |
| Corner Size (45 deg.) | 0.0039" | 0.100 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 4.4094" | 112.000 mm |
| Reach | 5.0000" | 127.000 mm |
| Minimum Extension | 5.0" | 127.0 mm |
| Maximum Extension | 5.8" | 147.8 mm |
| Shank Diameter h6 | 0.7874" | 20.000 mm |
| Overall Length | 7.0" | 178 mm |
| Cutting Edges | 3 | |
