Zedaro PURPECKER-4.708Z10.9-10STEPFRM-J25AB1 (0728614)
Zedaro PURPECKER-4.708Z10.9-10STEPFRM-J25AB1 (0728614)
Quantity
Couldn't load pickup availability
Sign in to see pricing.
Technical Files
Drawings, DXF profiles and CAD models are available to approved
account holders.
Sign in or
request approval.
Shipping calculated at checkout.
Zedaro UID: 0728614
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

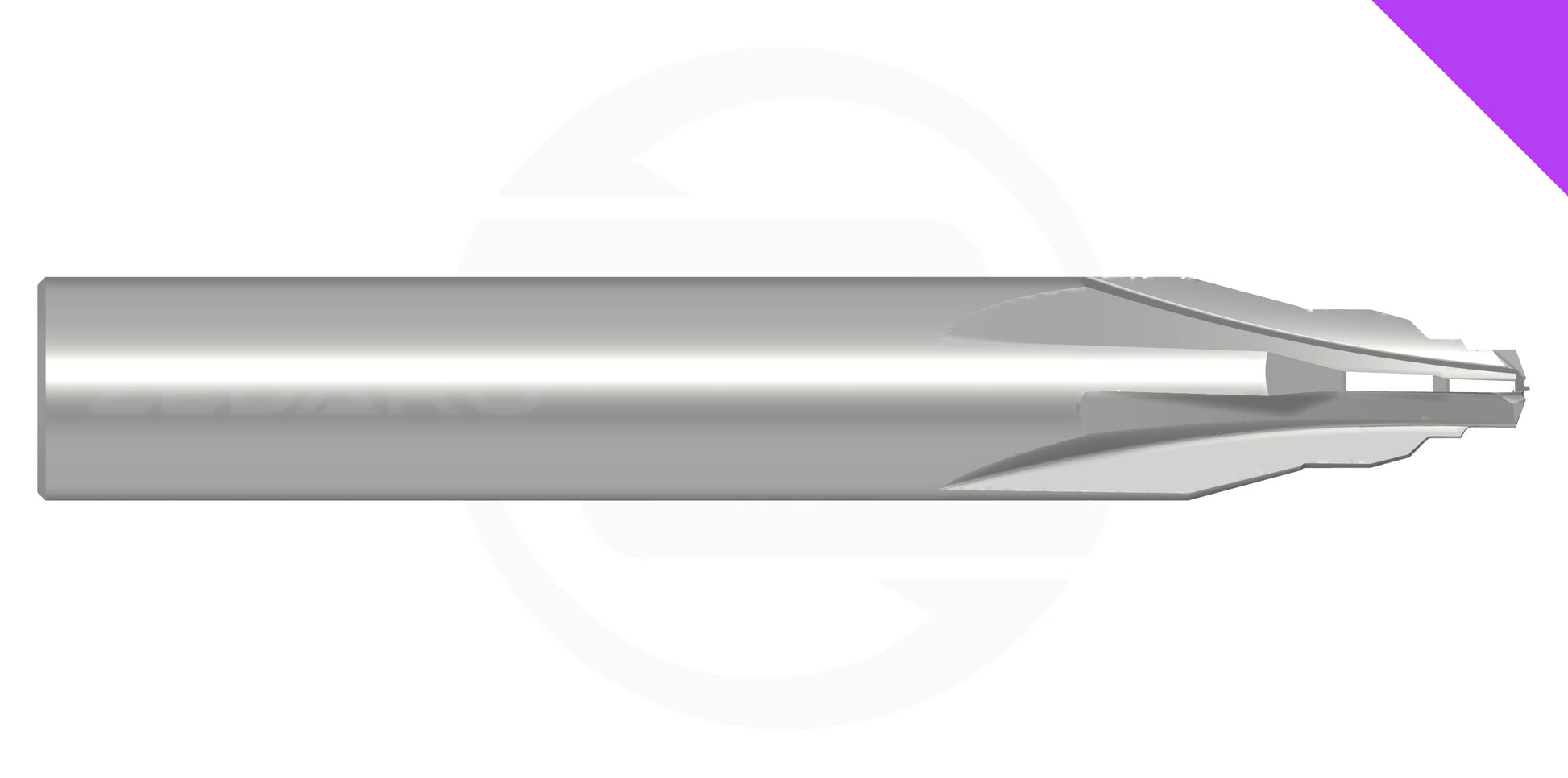

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro PURPECKER-4.708Z10.9-10STEPFRM-J25AB1 | |
| EDP # | 0728614 | |
| Workpiece Material(s) | Titanium (Purple) | |
| Weight (1 pc.) | 2.0 oz | 70.0 g |
| Gauge Diameter | 0.1854" | 4.708 mm |
| Gauge Distance (from tip) | 0.4291" | 10.900 mm |
| Application | General Drilling, Tapping (Pecker) | |
| Form | Contour / Profile | |
| Shank Diameter (h6) | 0.3750" | 9.520 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.4291" | 10.900 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.4291" | 10.900 mm |
| Minimum Extension | 0.4291" | 10.900 mm |
| Maximum Extension | 1.7520" | 44.500 mm |
Product Features:
- The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
- The 'Pecker' line is for general drilling and tapping.
- 'Z' form tools comprise of all arbitrary forms which do not match any other form category. These may be drills, mills, etc. where the key feature is accuracy of form.
- This is a custom design which does not follow standard proportions.
