Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

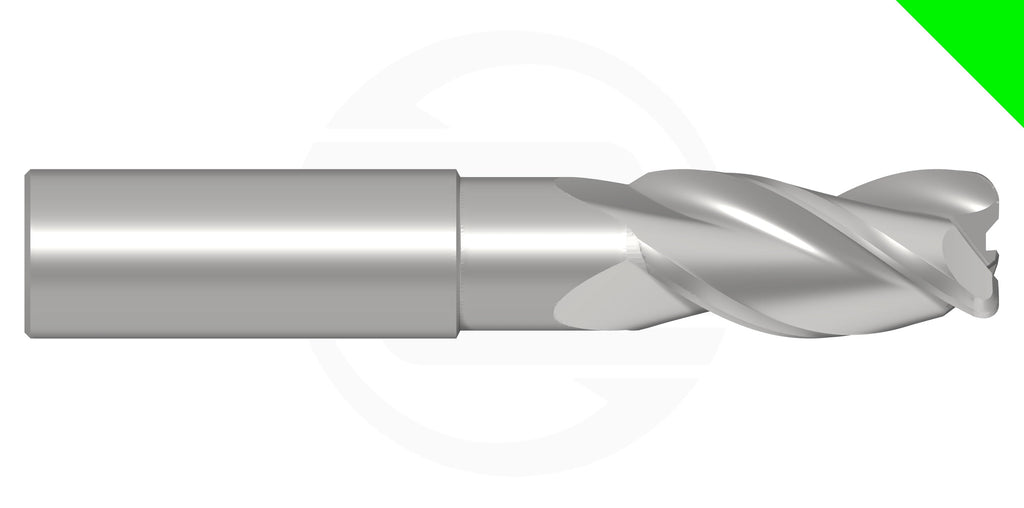

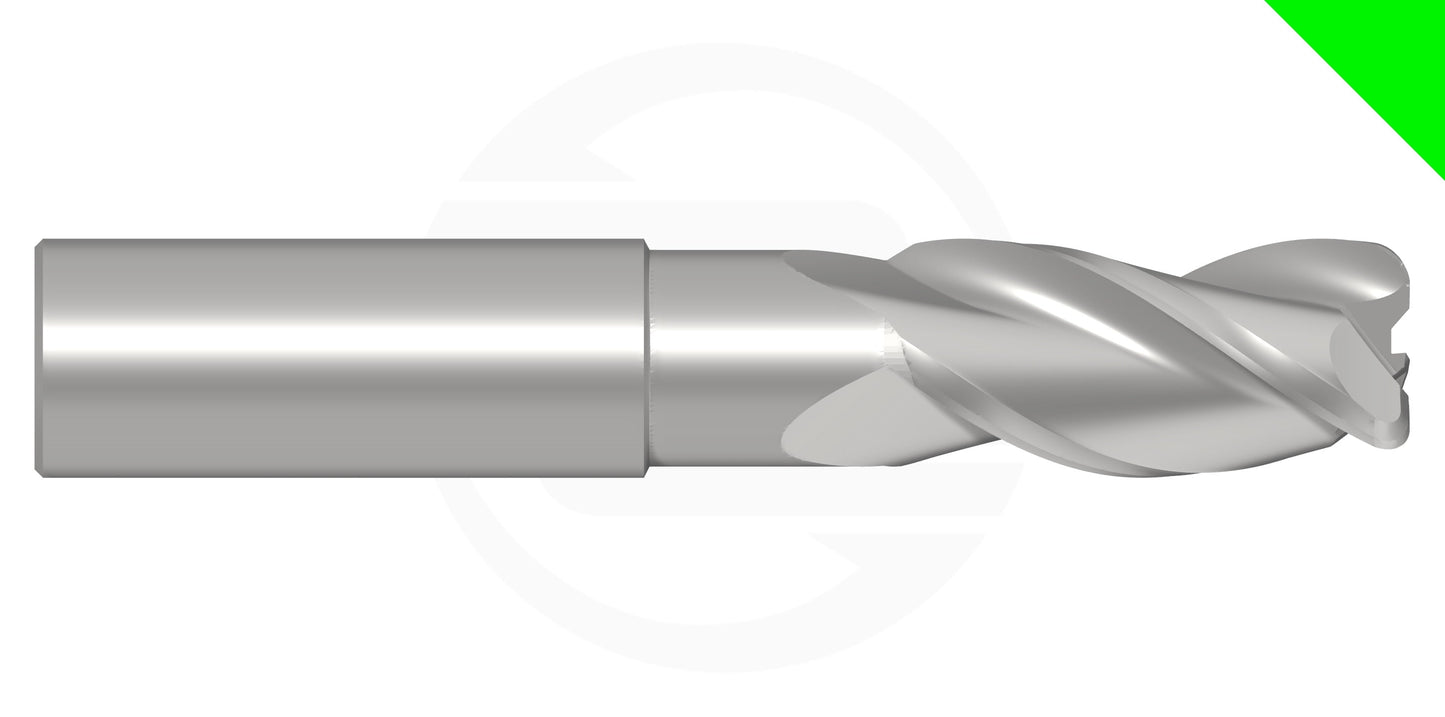

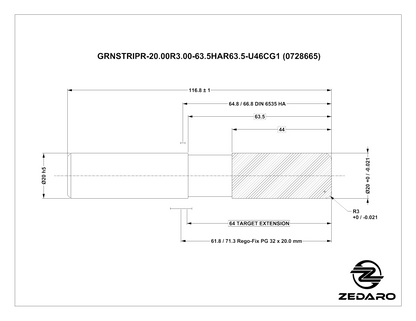

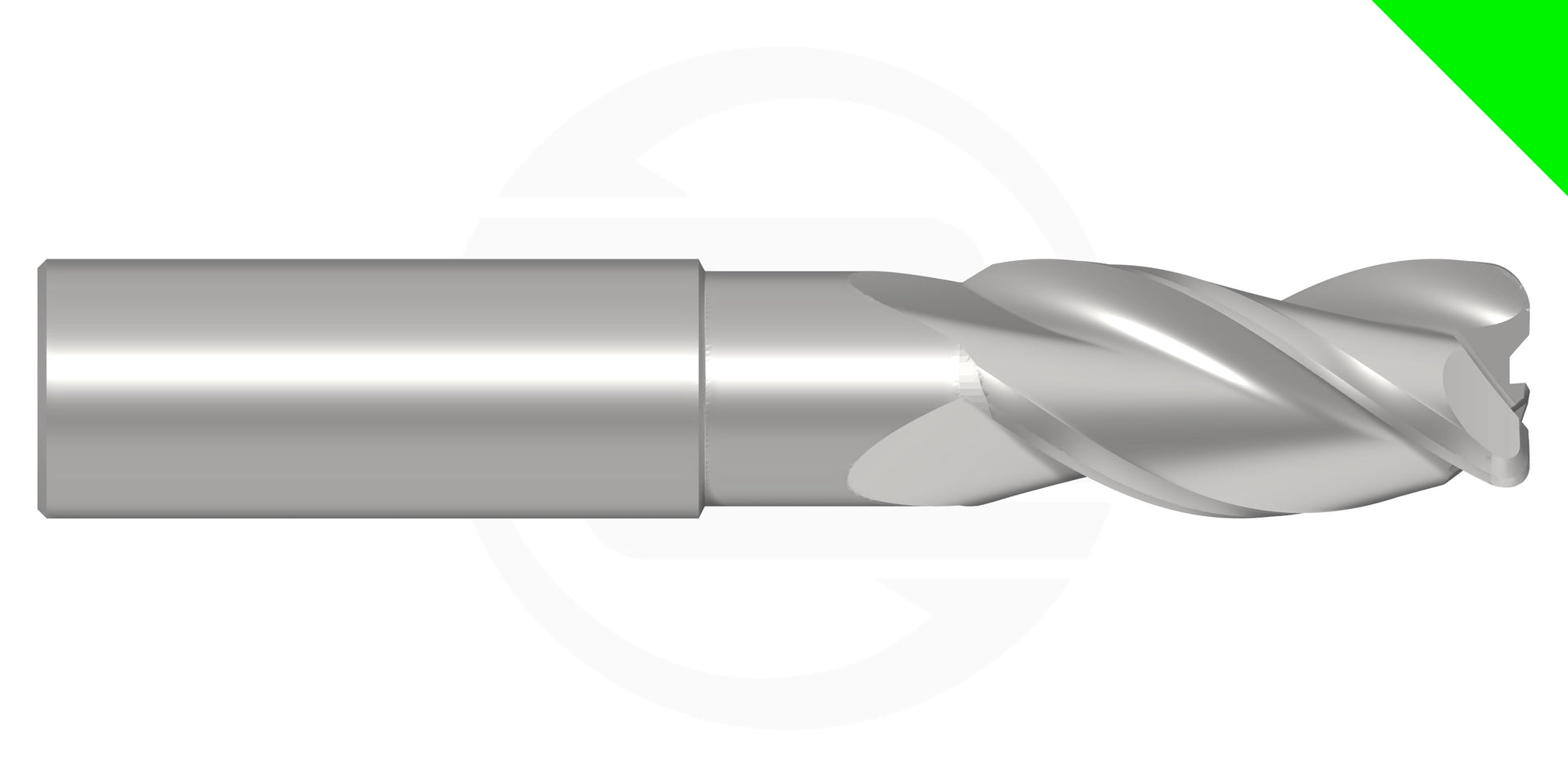

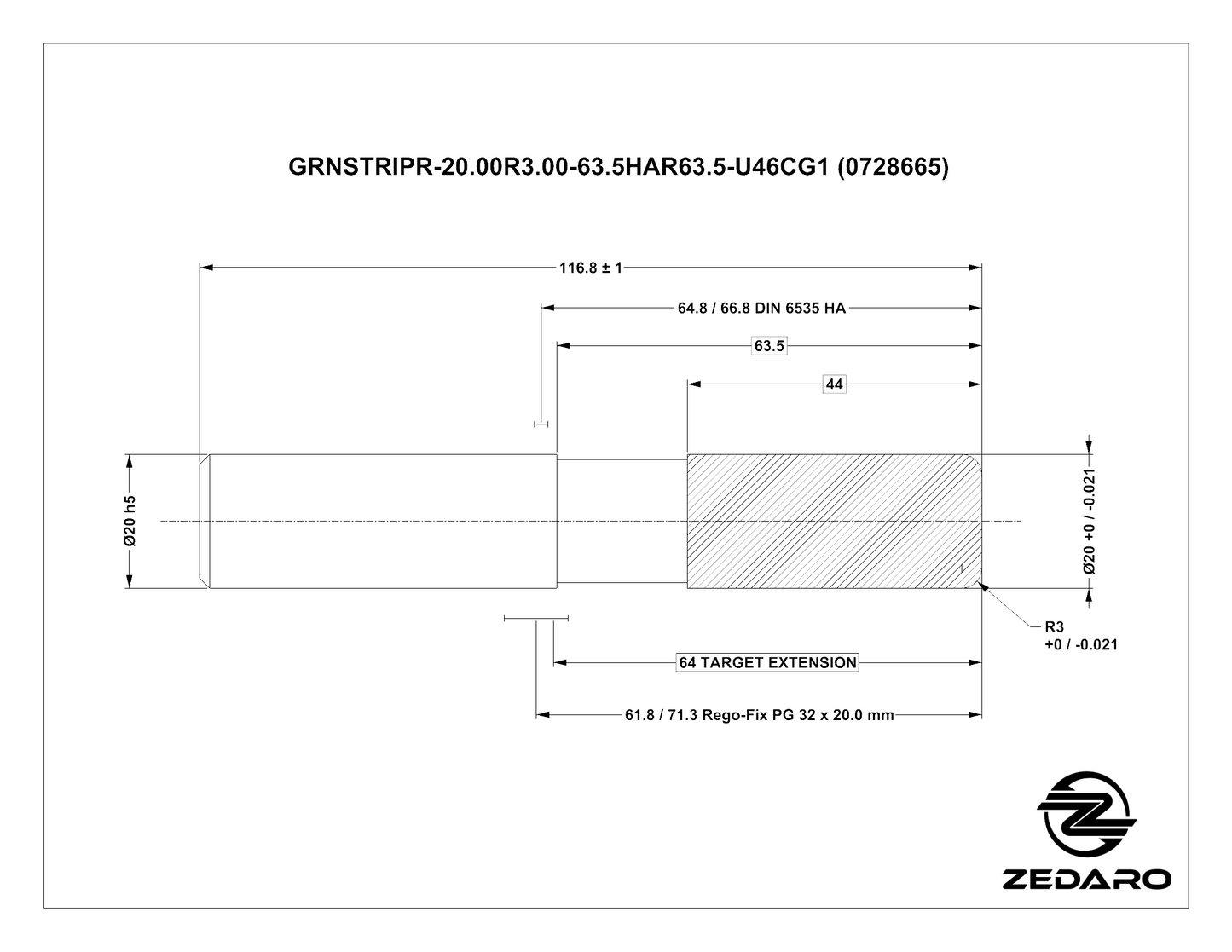

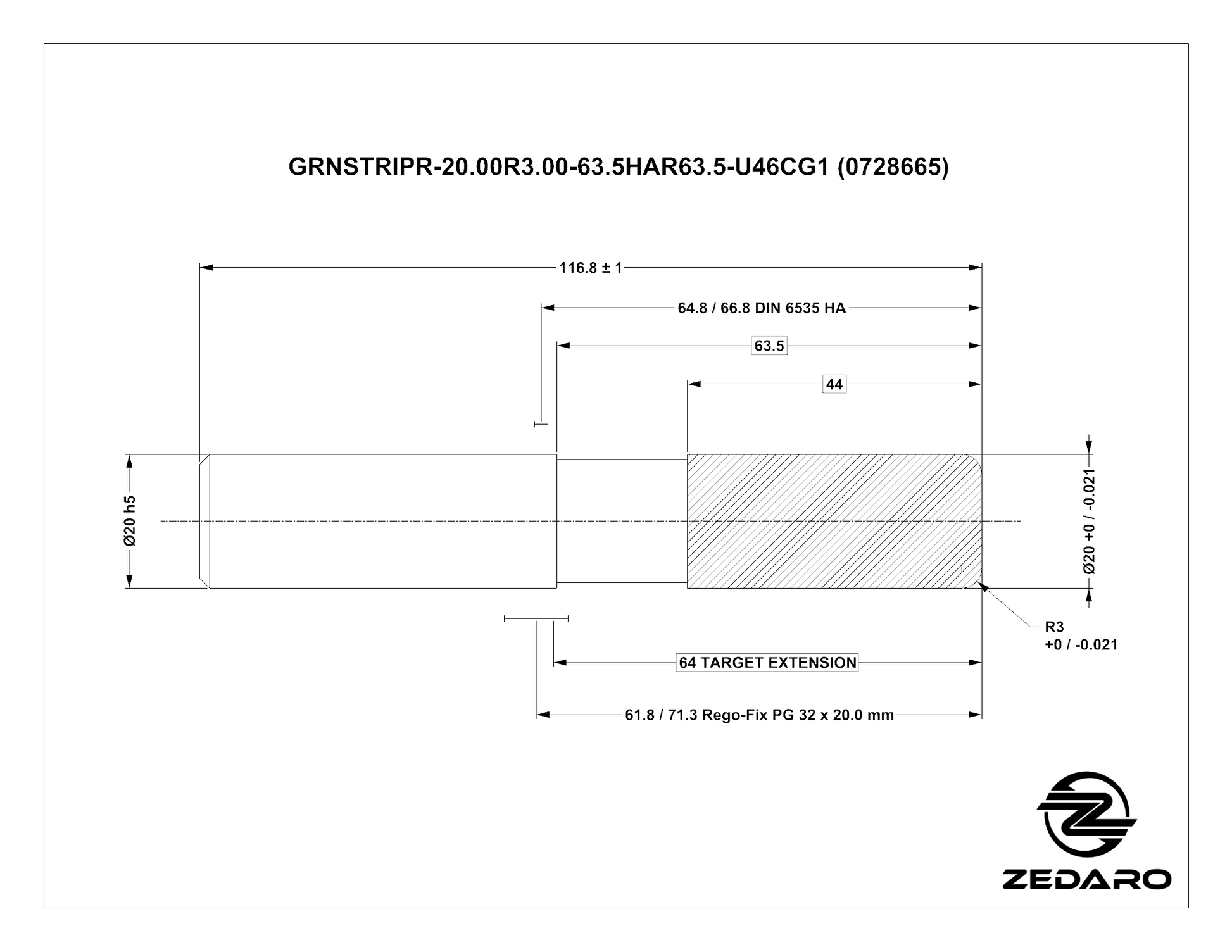

| Name | GRNSTRIPR-20.00R3.00-63.5HAR63.5-U46CG1 | |
| EDP # | 0728665 | |
| Material | Wrought Aluminum | Application | General Milling <20k RPM (Striper) |
| Form | End Mill - Bull / Rounded Corner | |
| Cutting Diameter | 0.7874" | 20.000 mm |
| Corner Radius | 0.1181" | 3.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 1.7323" | 44.000 mm |
| Reach | 2.5000" | 63.500 mm |
| Minimum Extension | 2.5" | 63.5 mm |
| Maximum Extension | 3.4" | 86.8 mm |
| Shank Diameter h6 | 0.7874" | 20.000 mm |
| Overall Length | 4.6" | 117 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h7 | |
