Description
Ceratizit Article Number: 1082030413
Ceratizit Material Number: 14519714
Ceratizit Komet Number (Unpacked): W80 10130.048425
Ceratizit Komet Number (Packed): W8010130048425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

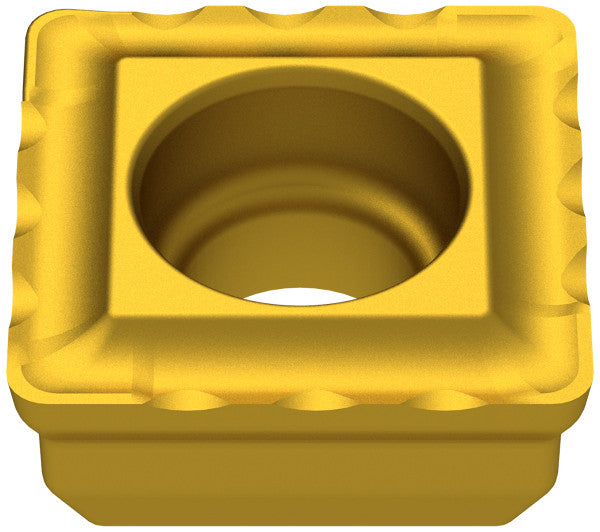

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SOGX 040204-13 BK8425 1082030413 | |
| EDP # | 0728705 | |
| Weight (1 pc.) | 0.1 oz | 2.1 g |
| Product-Carbon-Footprint | B | |

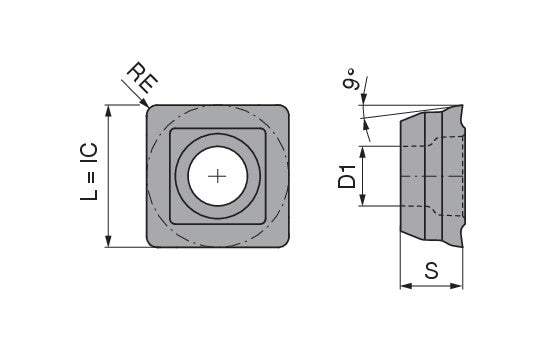

| Inscribed circle diameter / IC | 0.1890" | 4.800 mm |
| designation | 040204 | |
| insert thickness | 02 | |
| Fixing hole diameter / D1 | 0.0807" | 2.050 mm |
| Insert thickness / S | 0.0866" | 2.200 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
