Description
Ceratizit Article Number: 1082590421
Ceratizit Material Number: 12549176
Ceratizit Komet Number (Unpacked): W80 10210.047710
Ceratizit Komet Number (Packed): W8010210047710
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

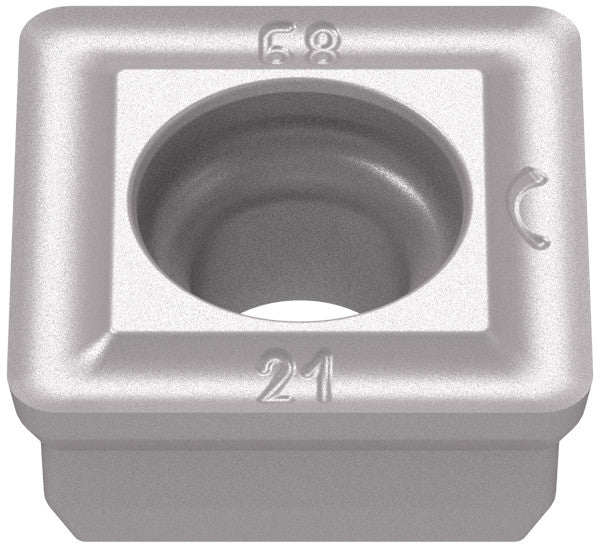

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SOGX 040204-21 BK7710 Pentron Carbide Drilling indexable Insert 1082590421 | |
| EDP # | 0728706 | |
| Weight (1 pc.) | 0.04 oz | 1.2 g |
| Inscribed circle diameter / IC | 0.1890" | 4.800 mm |
| designation | 40204.0000" | 1021181.600 mm |
| insert thickness | 2.0000" | 50.800 mm |
| Fixing hole diameter / D1 | 0.0807" | 2.050 mm |
| Insert thickness / S | 0.0866" | 2.200 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.1890" | 4.800 mm |
| Size | 4.0000" | 101.600 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7710 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
