Description
Ceratizit Article Number: 1082030501
Ceratizit Material Number: 12411237
Ceratizit Komet Number (Unpacked): W80 12010.048425
Ceratizit Komet Number (Packed): W8012010048425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

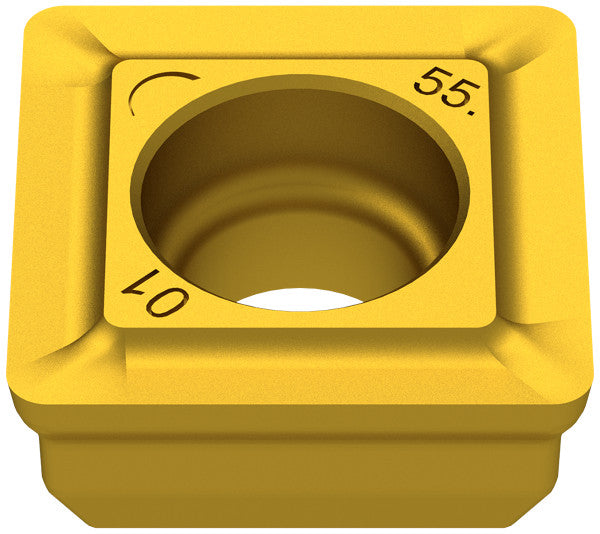

| Name | Ceratizit SOGX 050204SN-01 BK8425 Pentron Carbide Drilling indexable Insert 1082030501 | |
| EDP # | 0728715 | |
| Weight (1 pc.) | 0.1 oz | 1.9 g |
| Product-Carbon-Footprint | B | |
| Inscribed circle diameter / IC | 0.2165" | 5.500 mm |
| designation | 50204.0000" | 1275181.600 mm |
| insert thickness | 2.0000" | 50.800 mm |
| Fixing hole diameter / D1 | 0.0906" | 2.300 mm |
| Insert thickness / S | 0.0945" | 2.400 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2165" | 5.500 mm |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
