Description
Ceratizit Article Number: 1082000621
Ceratizit Material Number: 12549202
Ceratizit Komet Number (Unpacked): W80 18210.068430
Ceratizit Komet Number (Packed): W8018210068430
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

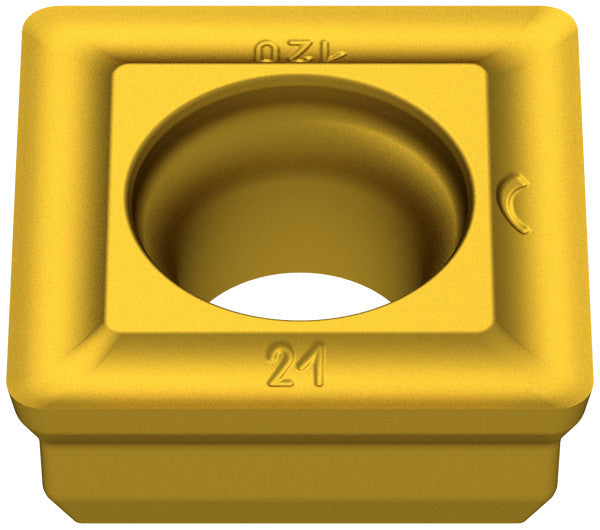

| Name | Ceratizit SOGX 060206EN-21 BK8430 Pentron Carbide Drilling indexable Insert 1082000621 | |
| EDP # | 0728729 | |
| Weight (1 pc.) | 0.1 oz | 2.3 g |
| Product-Carbon-Footprint | B | |

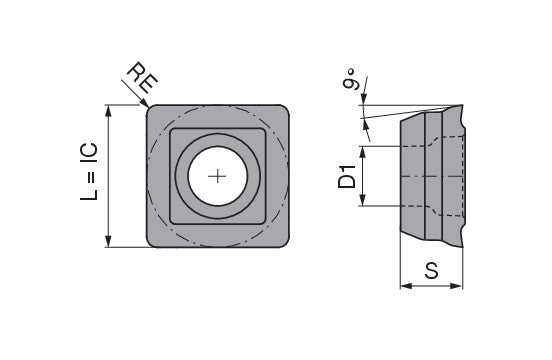

| Inscribed circle diameter / IC | 0.2441" | 6.200 mm |
| designation | 60206.0000" | 1529232.400 mm |
| insert thickness | 2.0000" | 50.800 mm |
| Fixing hole diameter / D1 | 0.1024" | 2.600 mm |
| Insert thickness / S | 0.1083" | 2.750 mm |
| Corner radius / RE | 0.0236" | 0.600 mm |
| Cutting edge length / L | 0.2441" | 6.200 mm |
| Size | 6.0000" | 152.400 mm |
| Coating name / Grade (Ceratizit) / COATN | BK8430 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
