Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 1082061001
Ceratizit Material Number: 12541647
Ceratizit Komet Number (Unpacked): W80 32010.086425
Ceratizit Komet Number (Packed): W8032010086425
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

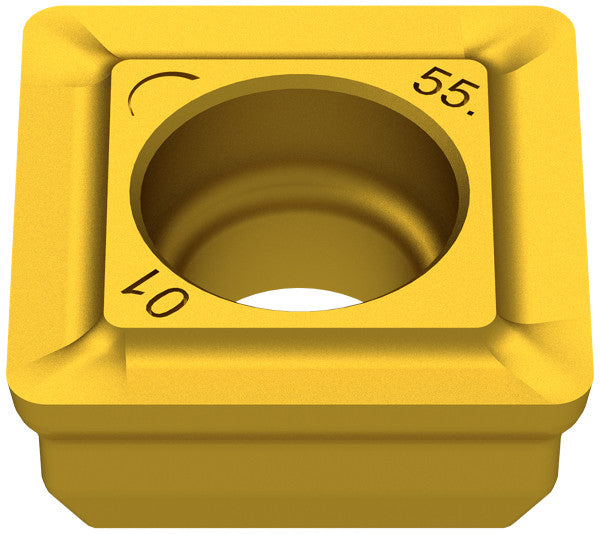

| Name | Ceratizit INSERT SOGX 100408-01 BK6425 1082061001 | |
| EDP # | 0728769 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 100408 | |
| Inscribed circle diameter / IC | 0.3858' | 9.800 mm |
| insert thickness | 04 | |
| Fixing hole diameter / D1 | 0.1614' | 4.100 mm |
| Insert thickness / S | 0.1654' | 4.200 mm |
| Corner radius / RE | 0.0315' | 0.800 mm |
| Coating name / Grade (Ceratizit) / COATN | BK6425 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
