Description
Ceratizit Article Number: 1082041101
Ceratizit Material Number: 12411233
Ceratizit Komet Number (Unpacked): W80 38010.086115
Ceratizit Komet Number (Packed): W8038010086115
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

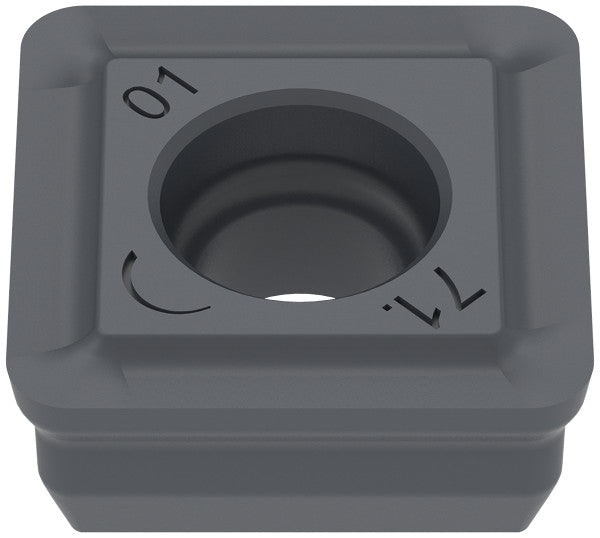

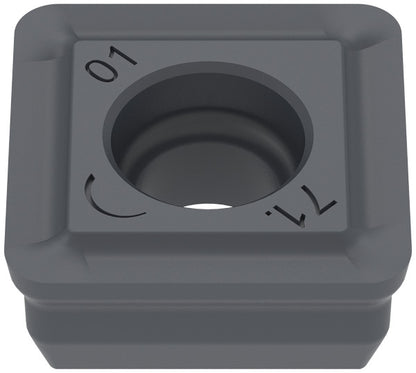

| Name | Ceratizit SOGX 110408-01 BK6115 Pentron Carbide Drilling indexable Insert 1082041101 | |
| EDP # | 0728780 | |
| Weight (1 pc.) | 0.2 oz | 7.0 g |
| Product-Carbon-Footprint | C | |

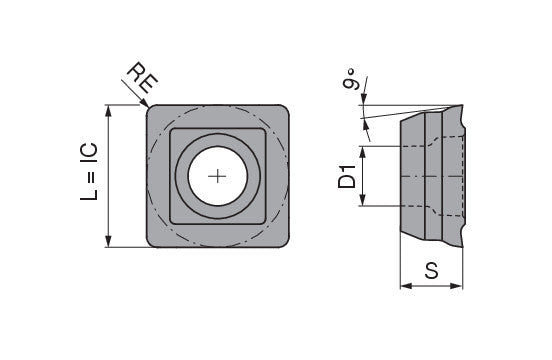

| Inscribed circle diameter / IC | 0.4291" | 10.900 mm |
| designation | 110408.0000" | 2804363.200 mm |
| insert thickness | 4.0000" | 101.600 mm |
| Fixing hole diameter / D1 | 0.1614" | 4.100 mm |
| Insert thickness / S | 0.1772" | 4.500 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.4291" | 10.900 mm |
| Coating name / Grade (Ceratizit) / COATN | BK6115 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
