Description
Ceratizit Article Number: 1082031134
Ceratizit Material Number: 14511429
Ceratizit Komet Number (Unpacked): W80 38340.088425
Ceratizit Komet Number (Packed): W8038340088425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

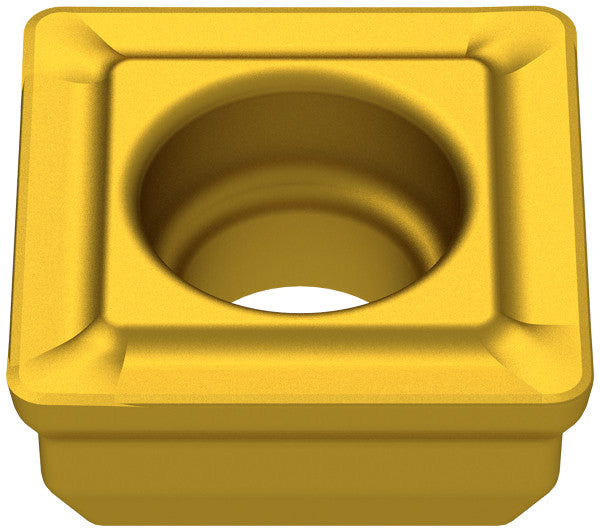

| Name | Ceratizit SOGX 110408-34 BK8425 Pentron Carbide Drilling indexable Insert 1082031134 | |
| EDP # | 0728792 | |
| Weight (1 pc.) | 0.1 oz | 2.9 g |
| Product-Carbon-Footprint | B | |
| Inscribed circle diameter / IC | 0.4291" | 10.900 mm |
| designation | 110408.0000" | 2804363.200 mm |
| insert thickness | 4.0000" | 101.600 mm |
| Fixing hole diameter / D1 | 0.1614" | 4.100 mm |
| Insert thickness / S | 0.1772" | 4.500 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.4291" | 10.900 mm |
| Size | 11.0000" | 279.400 mm |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
