Description
Ceratizit Article Number: 1082591321
Ceratizit Material Number: 12549293
Ceratizit Komet Number (Unpacked): W80 46210.087710
Ceratizit Komet Number (Packed): W8046210087710
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

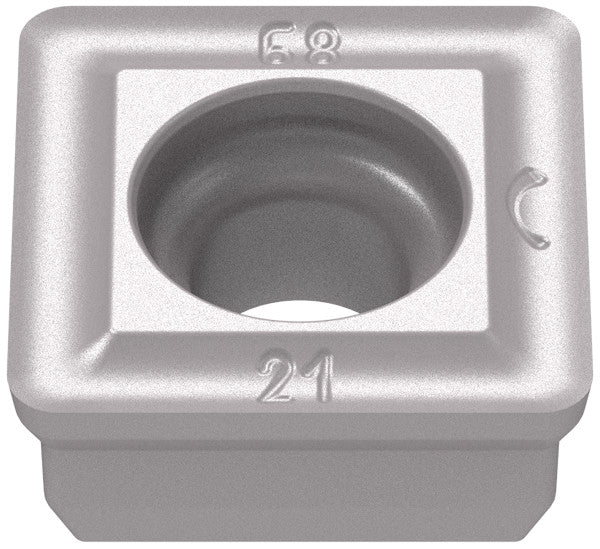

| Name | Ceratizit SOGX 130508-21 BK7710 1082591321 | |
| EDP # | 0728812 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.3 oz | 9.0 g |
| designation | 130508 | |
| Inscribed circle diameter / IC | 0.5197" | 13.200 mm |
| insert thickness | 05 | |
| Fixing hole diameter / D1 | 0.2047" | 5.200 mm |
| Insert thickness / S | 0.2047" | 5.200 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7710 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
