Description
Ceratizit Article Number: 6261851801
Ceratizit Material Number: 12549299
Ceratizit Komet Number (Unpacked): W82 32210.082730
Ceratizit Komet Number (Packed): W8232210082730
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

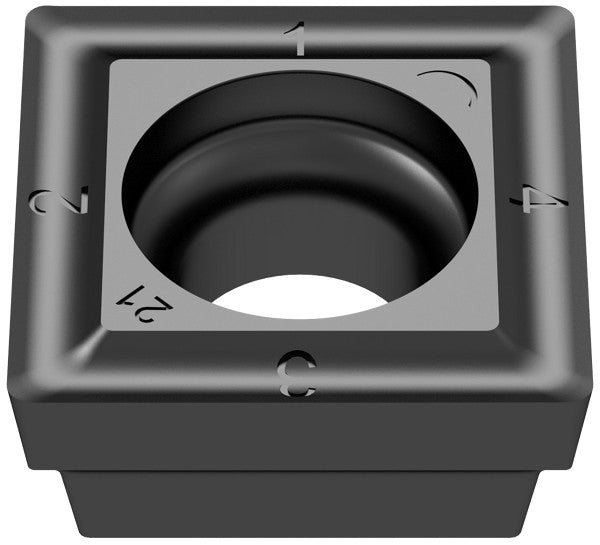

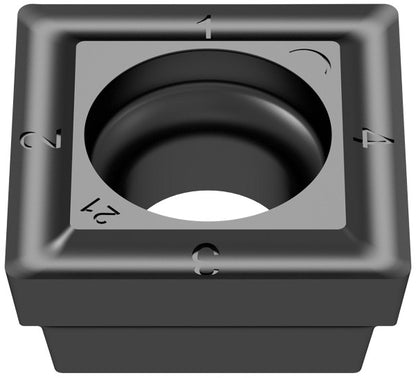

| Name | Ceratizit SOHX 090408-21 BK2730 6261851801 | |
| EDP # | 0728948 | |
| Weight (1 pc.) | 0.1 oz | 3.4 g |

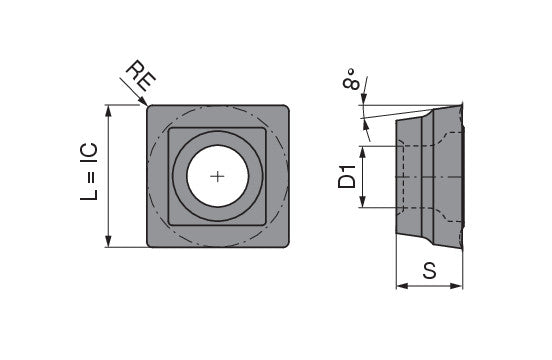

| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| designation | 090408 | |
| insert thickness | 04 | |
| Fixing hole diameter / D1 | 0.1614" | 4.100 mm |
| Insert thickness / S | 0.1720" | 4.370 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Coating name / Grade (Ceratizit) / COATN | BK2730 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
