Zedaro YELWIZZER-10.00N0.10-0730748-K28CE1 (0730748)
Zedaro YELWIZZER-10.00N0.10-0730748-K28CE1 (0730748)
Couldn't load pickup availability
Zedaro UID: 0730748
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

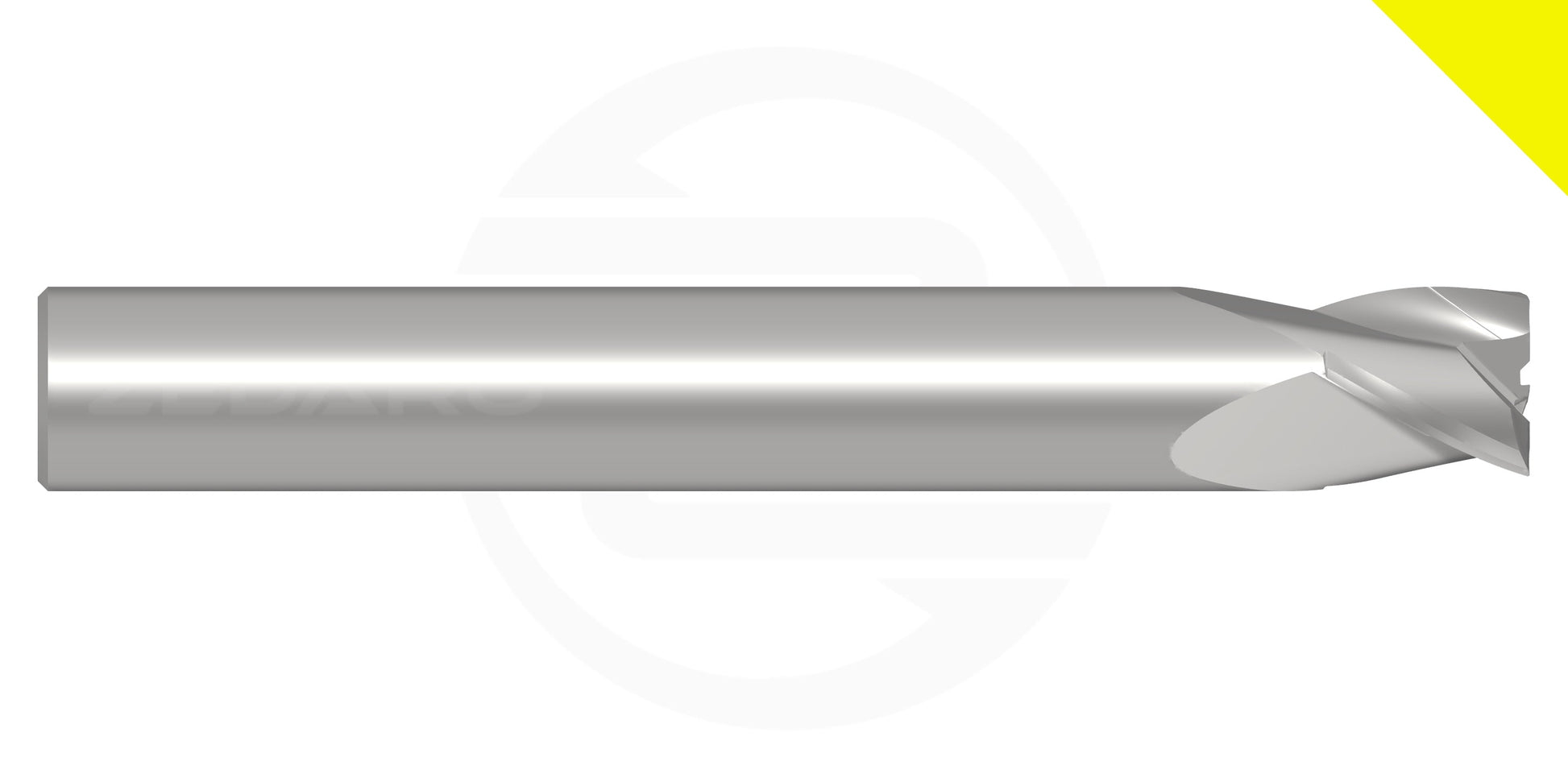

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro YELWIZZER-10.00N0.10-0730748-K28CE1 | |
| EDP # | 0730748 | |
| Workpiece Material(s) | Stainless Steel (Yellow) | |
| Weight (1 pc.) | 3.0 oz | 87.0 g |
| Cutting Diameter | 0.3937" | 10.000 mm |
| Corner Size (45 deg.) | 0.0039" | 0.100 mm |
| Application | Finish Face Milling <20k RPM (Wizzer) | |
| Form | Corner Chamfered | |
| Shank Diameter (h5) | 0.3937" | 10.000 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.3937" | 10.000 mm |
| Overall Length | 2.8000" | 71.120 mm |
| Reach | 0.0000" | 0.000 mm |
| Minimum Extension | 0.7874" | 20.000 mm |
| Maximum Extension | 2.0118" | 51.100 mm |
Product Features:
- The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
- The 'Wizzer' line is a tight-tolerance finishing tool which is intended for facing; primarily using the face of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
- 'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.
- This is a custom design which does not follow standard proportions.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
| Cutting Parameters - Bottom Finishing | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 1.2992" | 33.000 mm |
| Step Over (Radial, Ae) | 0.3937" | 10.000 mm |
| Step Down (Axial, Ap) | 0.0079" | 0.200 mm |
| Spindle Speed (S) | 3600 RPM | |
| Feed Rate (F) | 15 in/min | 380 mm/min |
| Cutting Speed (Vc) | 371 ft/min | 113 m/min |
