Description
Material Number: W0288040A40
Article Number: 50651040
This product is priced singly and comes in packs of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3A0288-04000.0030.R02.R00300.HA.B360 Torus Cutter W0288040A40 (0730831) | |
| EDP # | 0730831 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 18.0 g |

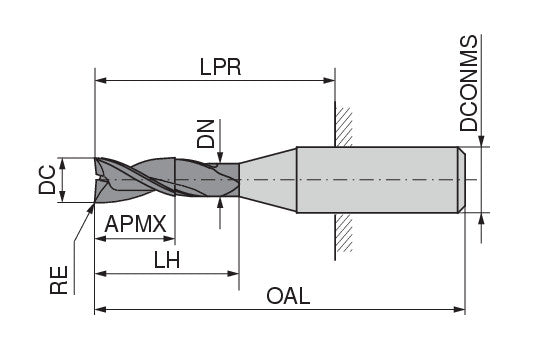

| Cutting diameter DC f8 | 0.1575 inch | 4 mm |
| Corner radius RE ±0.05 | 0.0118 inch | 0.3 mm |
| Depth of cut maximum APMX | 0.1181 inch | 3 mm |
| Neck Diameter DN | 0.1496 inch | 3.8 mm |
| Head length LH | 0.5118 inch | 13 mm |
| Protruding length LPR | 0.7087 inch | 18 mm |
| Overall length OAL | 2.126 inch | 54 mm |
| Mounting spigot diameter DCONMS h5 | 0.2362 inch | 6 mm |
| Peripheral effective cutting edge count ZEFP | 2 | |
| Coating name / Grade (Ceratizit) COATN | Ti1000 | |
Suitable Materials:
