Zedaro GRNBANGER-1.500R0.75-6.00CON25.4-G20AB1 (0730851)
Zedaro GRNBANGER-1.500R0.75-6.00CON25.4-G20AB1 (0730851)
Couldn't load pickup availability
Zedaro UID: 0730851
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

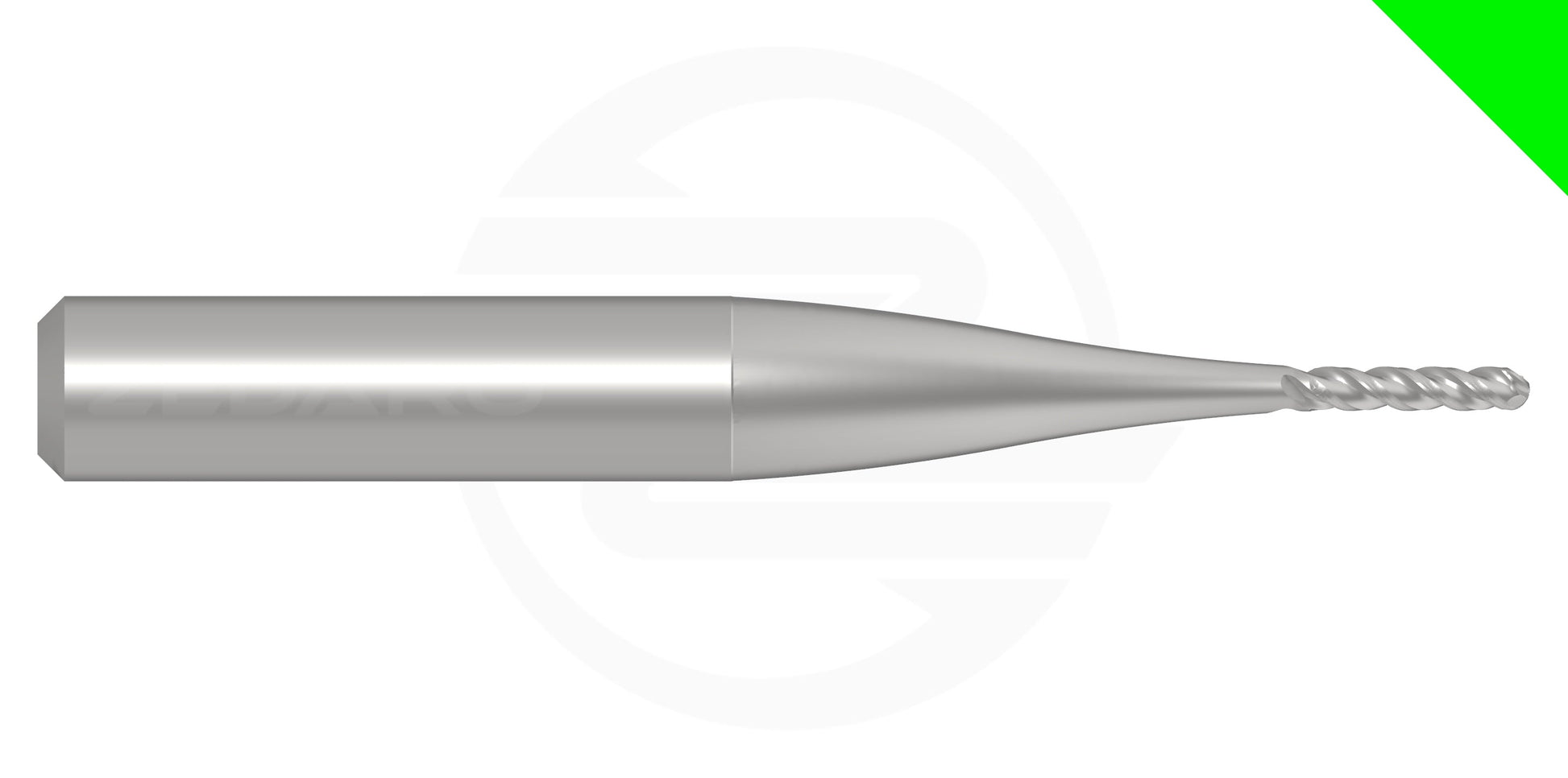

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNBANGER-1.500R0.75-6.00CON25.4-G20AB1 | |
| EDP # | 0730851 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 25.0 g |
| Cutting Diameter | 0.0591" | 1.500 mm |
| Corner Radius | 0.0295" | 0.750 mm |
| Application | Rough 3D Milling >20k RPM (Banger) | |
| Form | R-BALL | |
| Shank Diameter (h6) | 0.2500" | 6.350 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h9 | |
| Length of Cut | 0.2362" | 6.000 mm |
| Overall Length | 2.0000" | 50.800 mm |
| Reach | 0.2362" | 6.000 mm |
| Minimum Extension | 1.0000" | 25.400 mm |
| Maximum Extension | 1.5000" | 38.100 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Banger' line is designed for aggressive roughing and machine tools capable of spindle speeds greater than 20K rpm.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'CON' refers to the bird species 'Condor'.
