Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Pecker' line is for general drilling and tapping.
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
| Tool Properties | ||
|---|---|---|

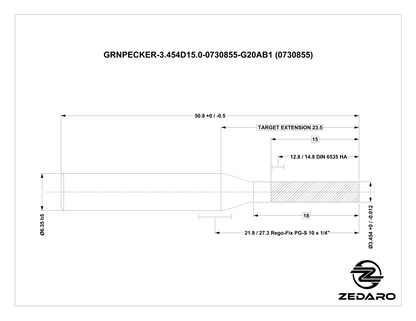

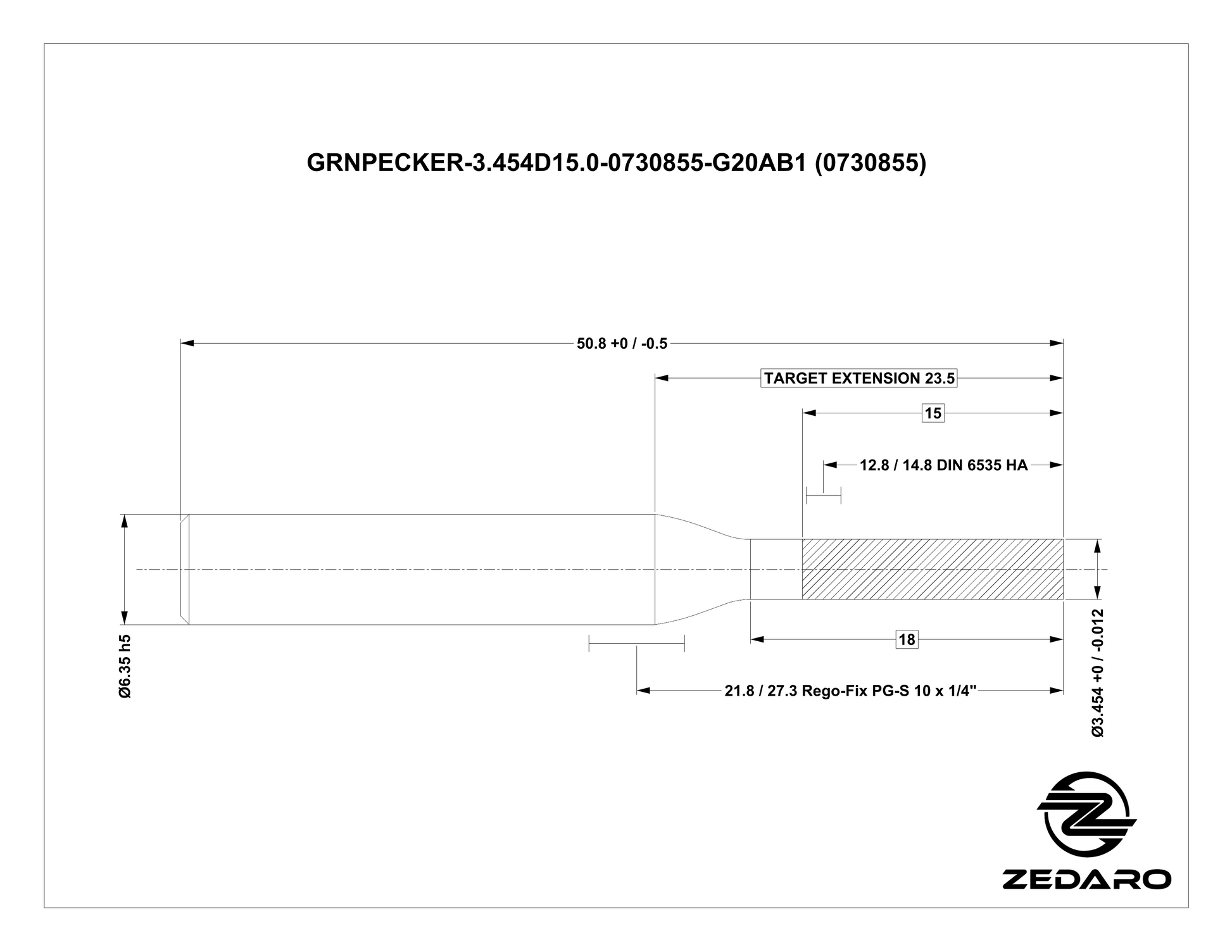

| Name | GRNPECKER-3.454D15.0-15.0PEK23.0-G20CC1 | |
| EDP # | 0730855 | |
| Material | Wrought Aluminum | Application | General Drilling, Tapping (Pecker) |

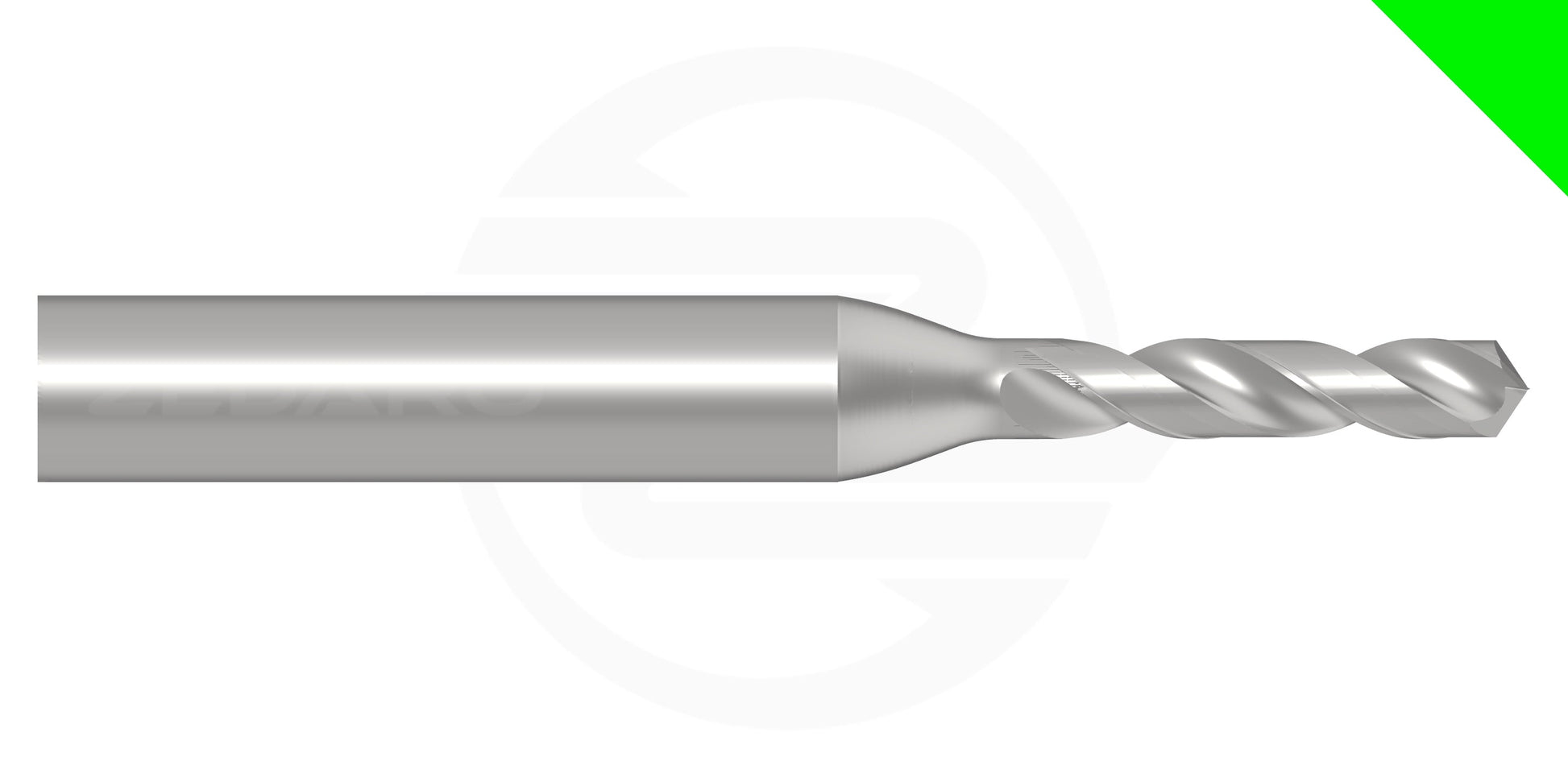

| Form | Drill | |
| Cutting Diameter | 0.1360" | 3.454 mm |
| Cutting Length | 0.5906" | 15.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.5906" | 15.000 mm |
| Reach | 0.5906" | 15.000 mm |
| Minimum Extension | 0.9" | 23.0 mm |
| Maximum Extension | 1.6" | 41.3 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h7 | |
