Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Material Number: 14443310
Ceratizit Article Number: 7142920200
Ceratizit Komet Number (Unpacked): 14443 310
Ceratizit Komet Number (Packed): 14443310
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

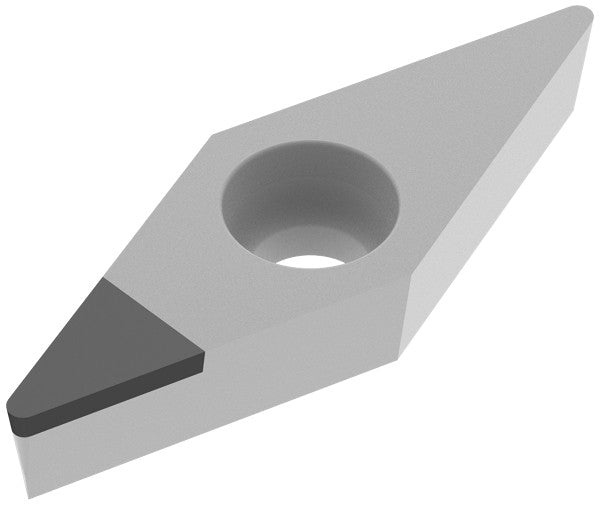

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VCGW 160408TN-012C_A4 CTBS20U Indexible Insert 14443310 | |
| EDP # | 0731033 | |
| Workpiece Material(s) | Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 15.0 g |
| designation | 160408TN | |
| Corner radius / RE | 0.0315' | 0.800 mm |
| Cutting edge length / L | 0.6535' | 16.600 mm |
| Insert thickness / S | 0.1874' | 4.760 mm |
| Fixing hole diameter / D1 | 0.1732' | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748' | 9.520 mm |
| support chamfer angle / GB | 15 ° | |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1732' | 4.400 mm |
| Face land width / BN | 0.0047' | 0.120 mm |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
