Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
'V' form tools are excellent for milling in confined areas and have optimal strength and stiffness properties for deep slotting and flanking. Typically combined with 5-axis simultaneous tool paths in the aerospace industry and for other complex forms, they are also commonly used on 3-axis machines for generating drafted walls; especially in the mold making industry.
| Tool Properties | ||
|---|---|---|

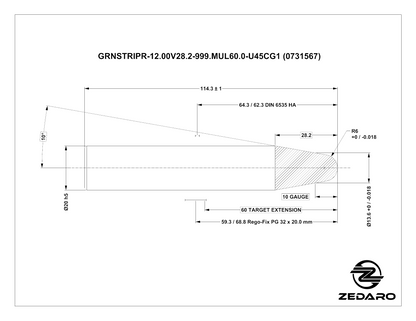

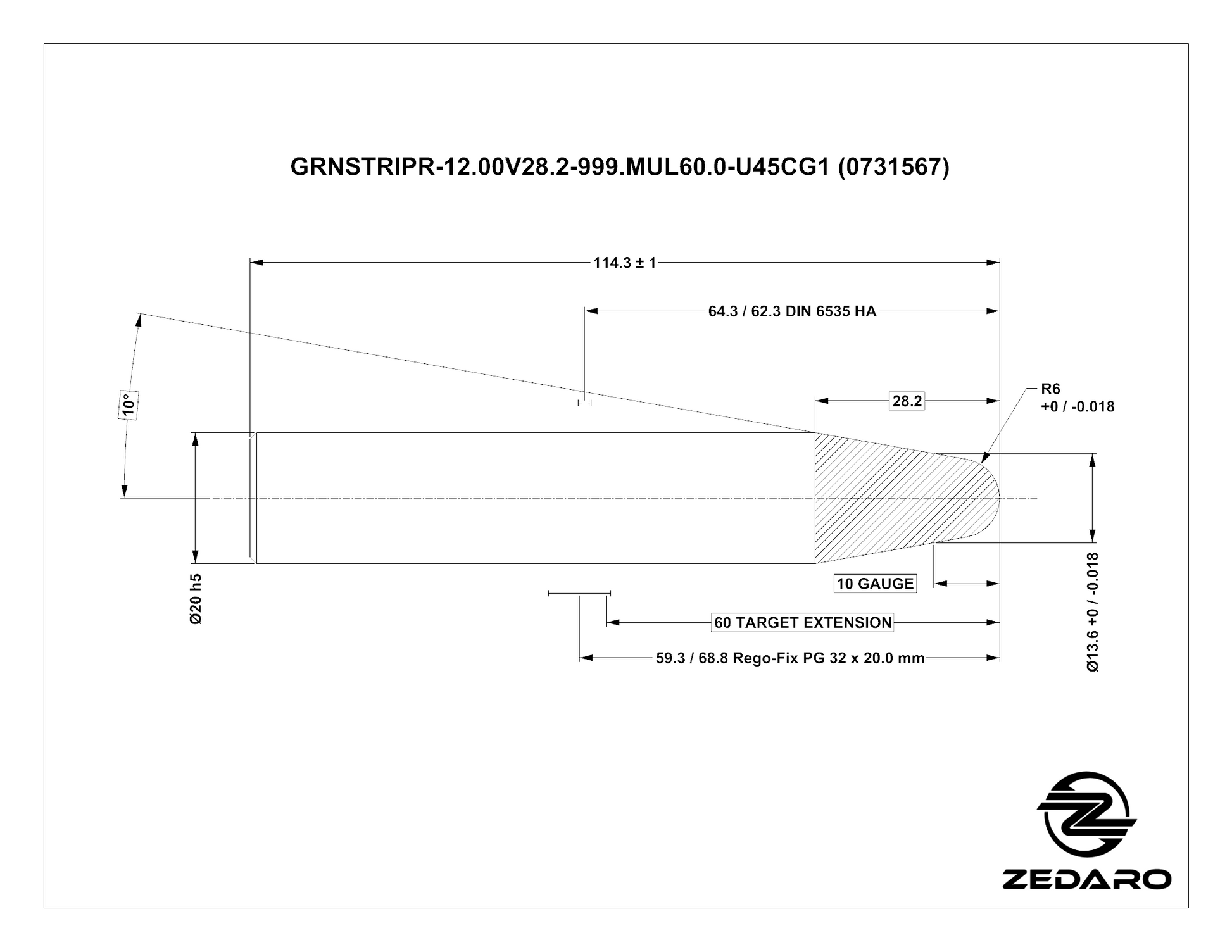

| Name | GRNSTRIPR-12.00V28.2-999.MUL60.0-U45CG1 | |
| EDP # | 0731567 | |
| Material | Wrought Aluminum | Application | General Milling <20k RPM (Striper) |

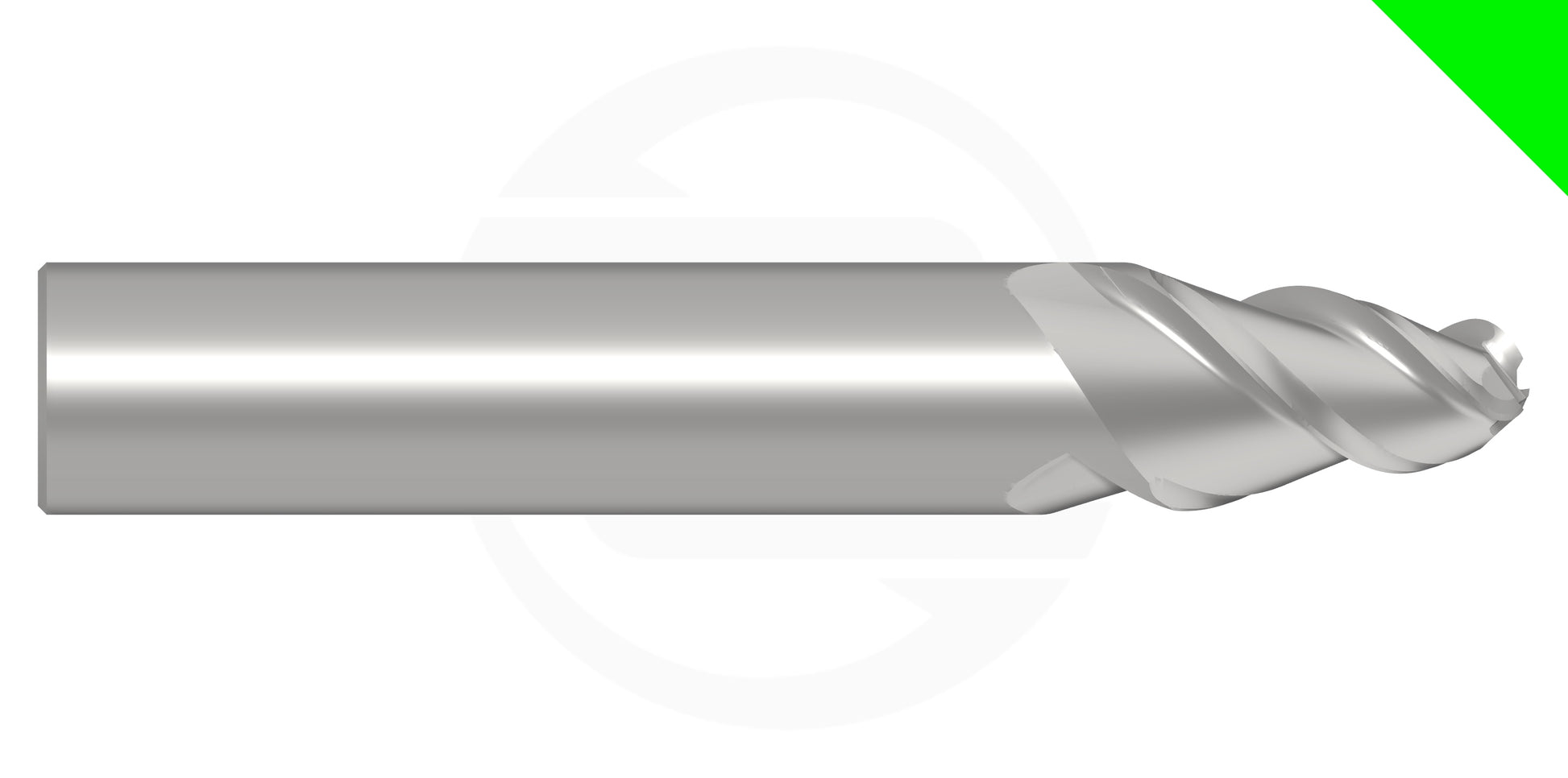

| Form | Tapered Ball-Nose End Mill | |
| Cutting Diameter | 0.4724" | 12.000 mm |
| Taper per Side | 10.0° | |
| Length of Cut | 1.1102" | 28.200 mm |
| Reach | (No flank reach limit) | |
| Minimum Extension | 2.4" | 60.0 mm |
| Maximum Extension | 3.3" | 84.3 mm |
| Shank Diameter h6 | 0.7874" | 20.000 mm |
| Overall Length | 4.5" | 114 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h7 | |
