Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Engraver' line is for engraving, and is also suitable for chamfering and deburring.
'C' form tools are for chamfering and deburring, available in a large array of tip angles.
| Tool Properties | ||
|---|---|---|

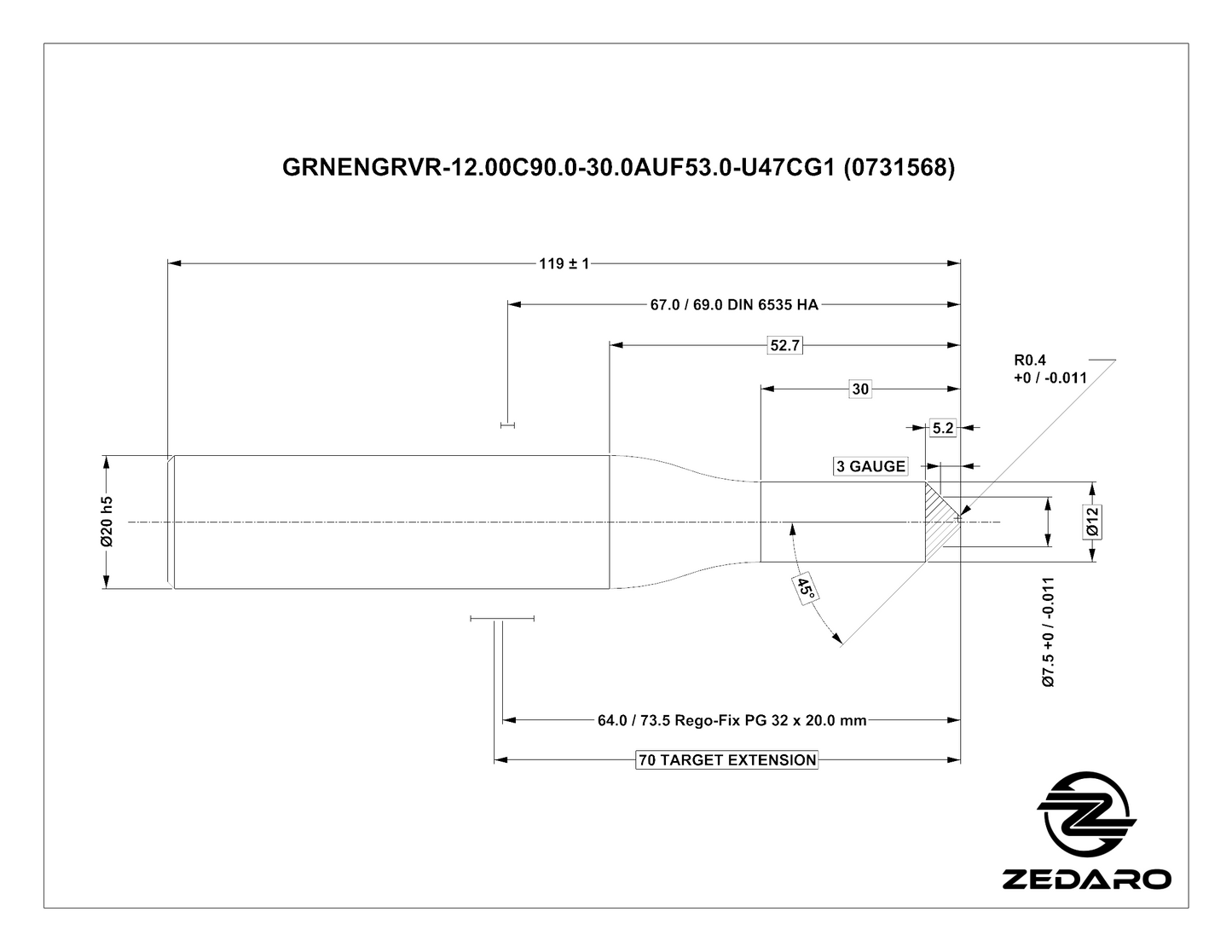

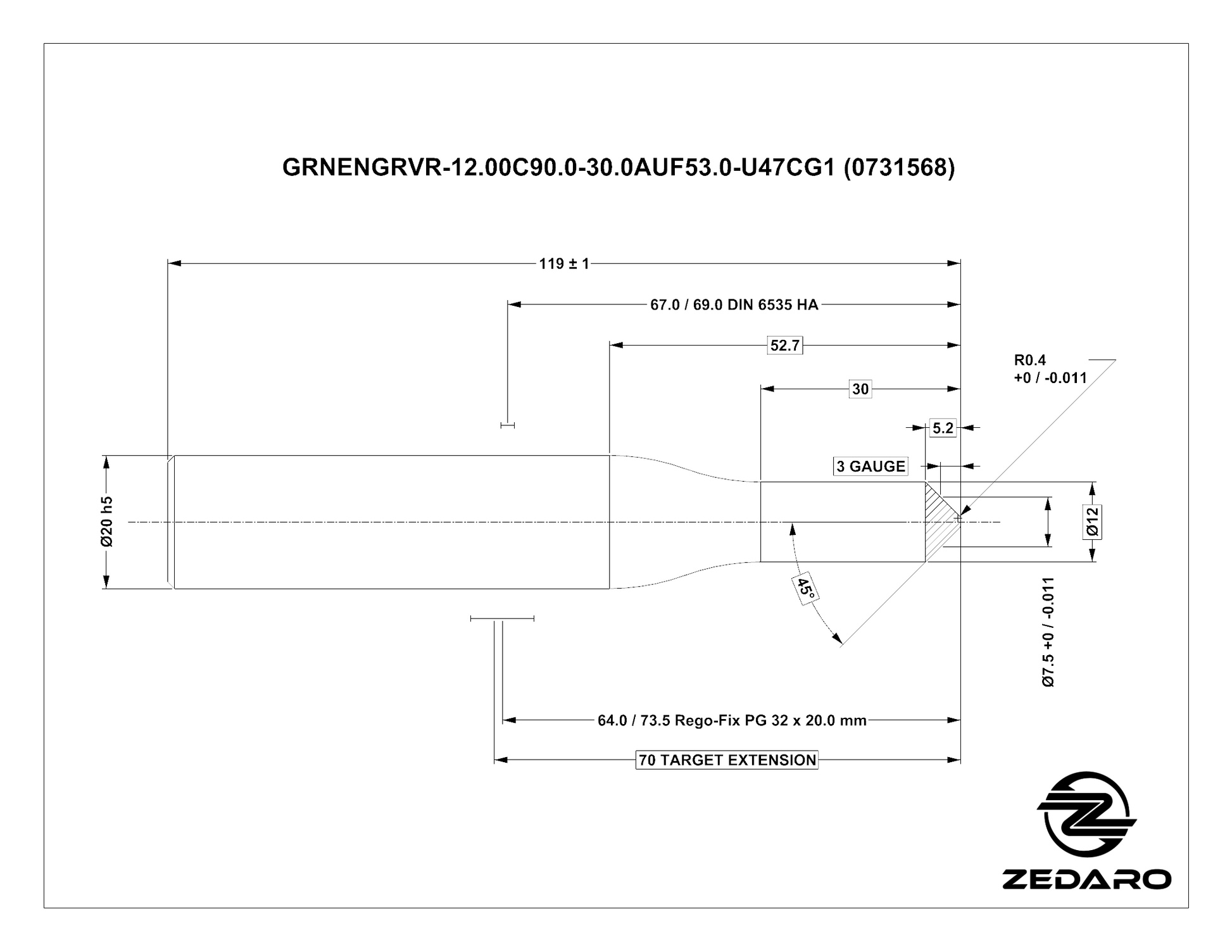

| Name | GRNENGRVR-12.00C90.0-30.0AUF53.0-U47CG1 | |
| EDP # | 0731568 | |
| Material | Wrought Aluminum | Application | Finish Chamfer/Deburr/Engrave (Engraver) |

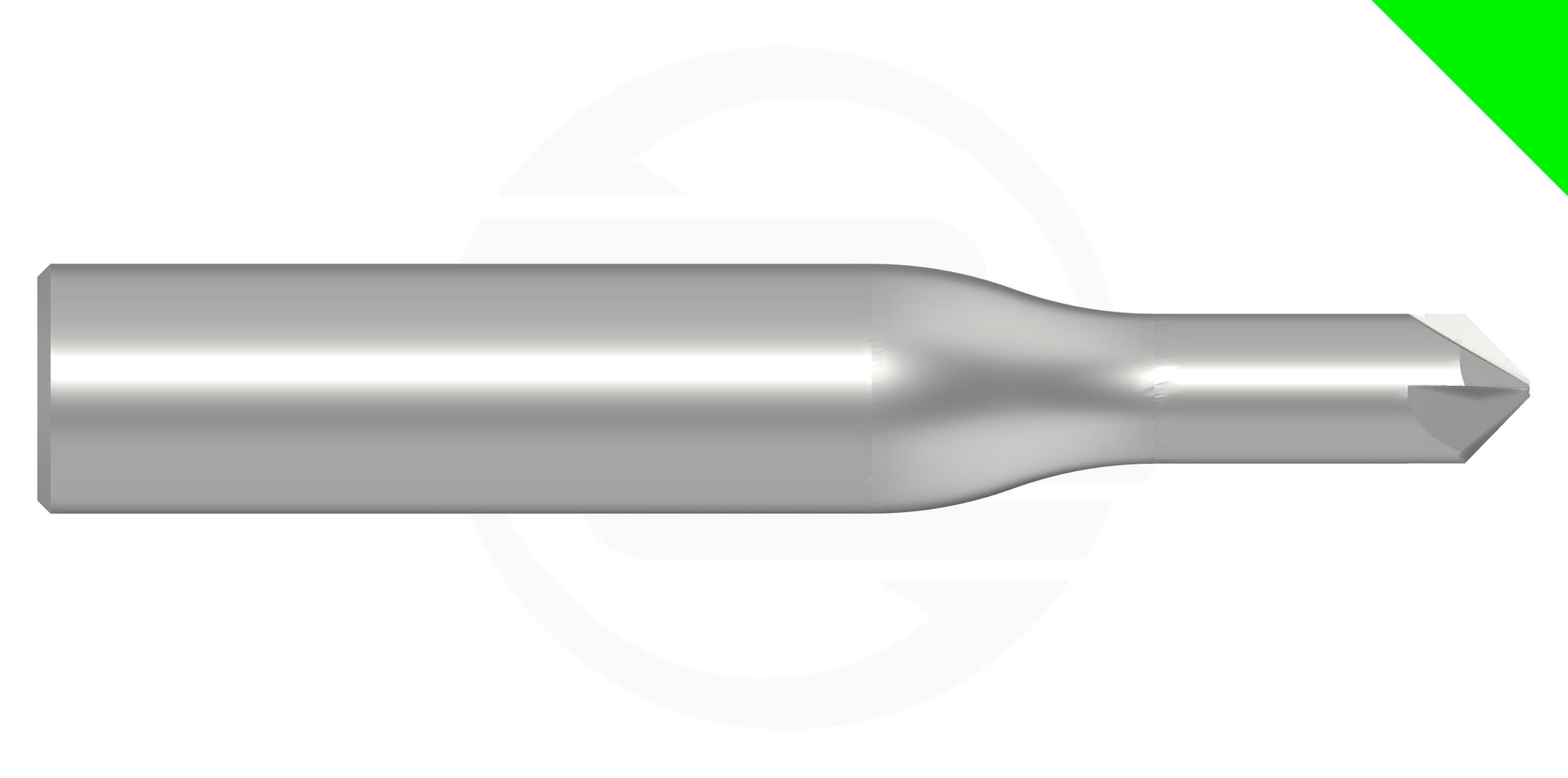

| Form | Chamfer Tool | |
| Cutting Diameter | 0.4724" | 12.000 mm |
| Total Tip Angle | 90.00° | |
| Taper per Side | 45.00° | |
| Length of Cut | 0.2067" | 5.250 mm |
| Reach | 1.1811" | 30.000 mm |
| Minimum Extension | 2.1" | 53.0 mm |
| Maximum Extension | 3.5" | 89.4 mm |
| Shank Diameter h6 | 0.7874" | 20.000 mm |
| Overall Length | 4.7" | 120 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h6 | |
