Description
Note that this item has been discontinued and will not be re-stocked.
Material Number: 2245205000
Article Number: 22452050
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

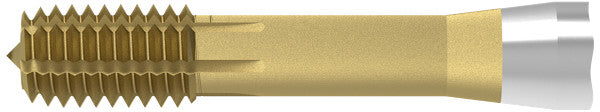

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DuoForm NEO SN-PM.M5.ISO2X-6HX.C TIN 2245205000 | |
| EDP # | 0731628 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 14.2 g |
| Thread diameter range / TD | 0.1969' | 5.000 mm |
| Thread pitch / TP | 0.0315' | 0.800 mm |
| Overall length / OAL | 2.7559' | 70.000 mm |
| Mounting spigot diameter / DCONMS | 0.2362' | 6.000 mm |
| Drive size / DRVS | 0.1929' | 4.900 mm |
| Premachined hole diameter / PHD | 0.1831' | 4.650 mm |
| Thread cutting part length / THL | 0.5906' | 15.000 mm |
| Usable length / LU | 0.9843' | 25.000 mm |
| Flutes | 4 | |
| Thread tolerance class / TCTR | ISO 2X6HX | |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
