Description
Ceratizit Article Number: 5001402200
Ceratizit Material Number: 12602499
Ceratizit Komet Number (Unpacked): 1F40000100417X
Ceratizit Komet Number (Packed): 1F40000100417X
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

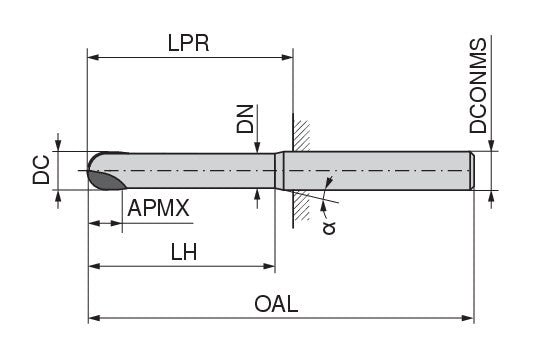

| Properties | ||
|---|---|---|
| Name | Ceratizit WN.RD.2,0.Z1.HA.L10_PKD PCD Radius Cutter 5001402200 | |
| EDP # | 0731766 | |
| Weight (1 pc.) | 1.0 oz | 29.2 g |
| Cutting diameter / DC h7 | 0.0787" | 2.000 mm |
| Depth of cut maximum / APMX | 0.0787" | 2.000 mm |
| Neck Diameter / DN | 0.0669" | 1.700 mm |
| Head length / LH | 0.3937" | 10.000 mm |
| Protruding length / LPR | 1.5354" | 39.000 mm |
| Overall length / OAL | 2.9528" | 75.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.2362" | 6.000 mm |
| Peripheral effective cutting edge count / ZEFP | 1 | |
| Corner radius / RE | 0.0394" | 1.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
