Description
Ceratizit Article Number: 5001403400
Ceratizit Material Number: 12602502
Ceratizit Komet Number (Unpacked): 1F40000100758X
Ceratizit Komet Number (Packed): 1F40000100758X
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WN.RD.3,0.Z2.HA.L35_PKD CoreLine - PCD Ball-nosed End Mills - 5001403400 | |
| EDP # | 0731862 | |
| Weight (1 pc.) | 1.0 oz | 22.2 g |
| Machining process - Main Application | Form milling | |

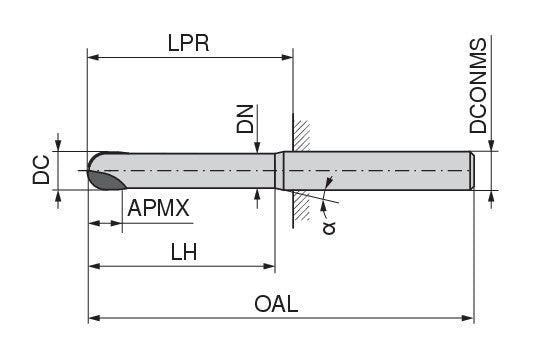

| Cutting diameter / DC h7 | 0.1181" | 3.000 mm |
| Depth of cut maximum / APMX | 0.0984" | 2.500 mm |
| Neck Diameter / DN | 0.0984" | 2.500 mm |
| Head length / LH | 1.3780" | 35.000 mm |
| Protruding length / LPR | 1.5354" | 39.000 mm |
| Overall length / OAL | 2.9528" | 75.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.2362" | 6.000 mm |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
| Corner radius / RE | 0.0591" | 1.500 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
