Description
Ceratizit Article Number: 10921251
Ceratizit Material Number: 1092125100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

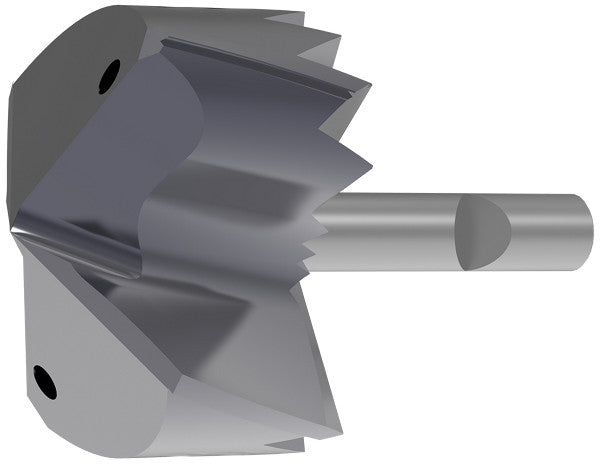

| Name | Ceratizit WTX-CHANGE-VA.25,10.R.TI700 Drilling Head For Exchangeable Head Drills 10921251 | |
| EDP # | 0732793 | |
| Weight (1 pc.) | 2.0 oz | 58.5 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Solid drilling | |

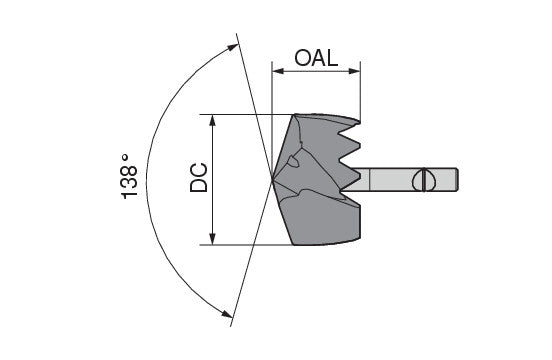

| Cutting diameter / DC h7 | 0.9882" | 25.100 mm |
| Overall length / OAL | 0.6850" | 17.400 mm |
| Protruding length / LPR | 0.6850" | 17.400 mm |
| SIG / SIG | 138 ° | |
| Coating name / Grade (Ceratizit) / COATN | Ti700 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
