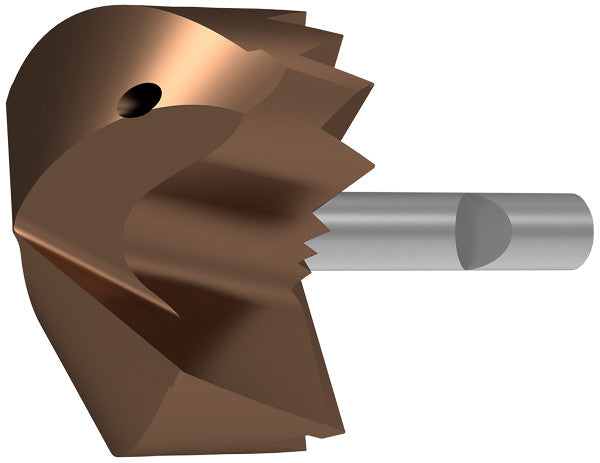

Ceratizit WTX-CHANGE-GG.14,00.R.TiSi Drilling Head For Exchangeable Drills 10924140 (0733102)
Ceratizit WTX-CHANGE-GG.14,00.R.TiSi Drilling Head For Exchangeable Drills 10924140 (0733102)
Couldn't load pickup availability
Ceratizit Article Number: 10924140
Ceratizit Material Number: 1092414000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WTX-CHANGE-GG.14,00.R.TiSi Drilling Head For Exchangeable Drills 10924140 | |
| EDP # | 0733102 | |
| Weight (1 pc.) | 1.0 oz | 17.2 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Solid drilling | |
| Cutting diameter / DC m7 | 0.5512" | 14.000 mm |
| Overall length / OAL | 0.4449" | 11.300 mm |
| Protruding length / LPR | 0.4449" | 11.300 mm |
| SIG / SIG | 140 ° | |
| Coating name / Grade (Ceratizit) / COATN | TiSi | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
