Zedaro GRNBASHER-16.00R3.00-49.0ELA50.0-R40CG1 (0733464)
Zedaro GRNBASHER-16.00R3.00-49.0ELA50.0-R40CG1 (0733464)
Couldn't load pickup availability
Zedaro UID: 0733464
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

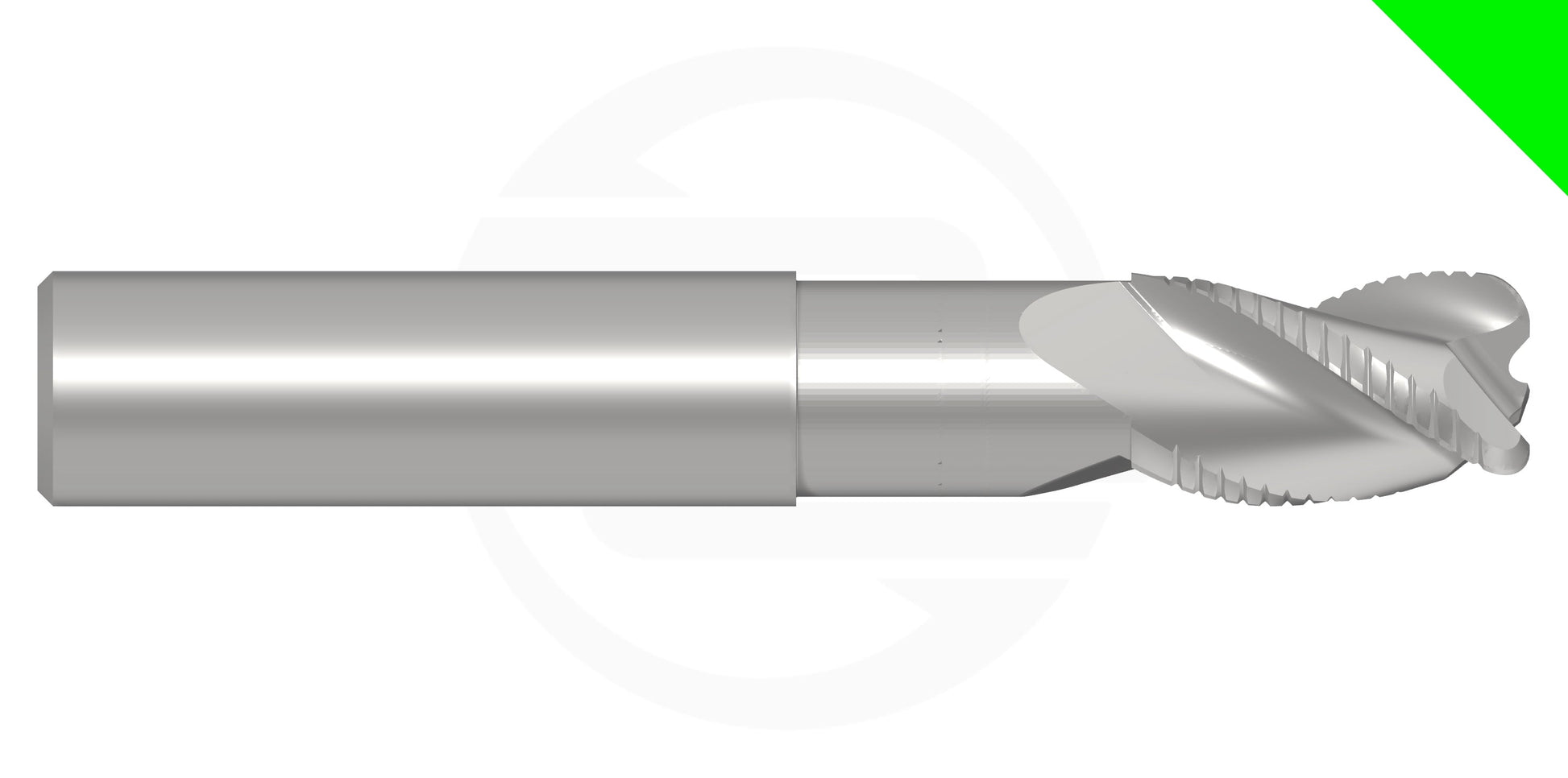

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNBASHER-16.00R3.00-49.0ELA50.0-R40CG1 | |
| EDP # | 0733464 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 11.0 oz | 319 g |
| Cutting Diameter | 0.6299" | 16.000 mm |
| Corner Radius | 0.1181" | 3.000 mm |
| Application | Rough 3D Milling w/ Chip Breakers <20k RPM (Basher) | |
| Form | R-TORUS | |
| Shank Diameter (h5) | 0.6299" | 16.000 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h9 | |
| Length of Cut | 1.0630" | 27.000 mm |
| Overall Length | 4.0000" | 101.600 mm |
| Reach | 1.9291" | 49.000 mm |
| Minimum Extension | 1.9685" | 50.000 mm |
| Maximum Extension | 2.7402" | 69.600 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Basher' line is designed for aggressive roughing and machine tools capable of spindle speeds up to 20K rpm. It incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions. The design incorporates our special blend of fully variable geometry (including helix, pitch, spacing, location and size) as well as aggressive chip breakers designed to reduce chip size. This line of cutting tools is not designed to produce finish surfaces, but rather to achieve maximum material removal rates.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'ELA' refers to the bird species 'Elan'.
