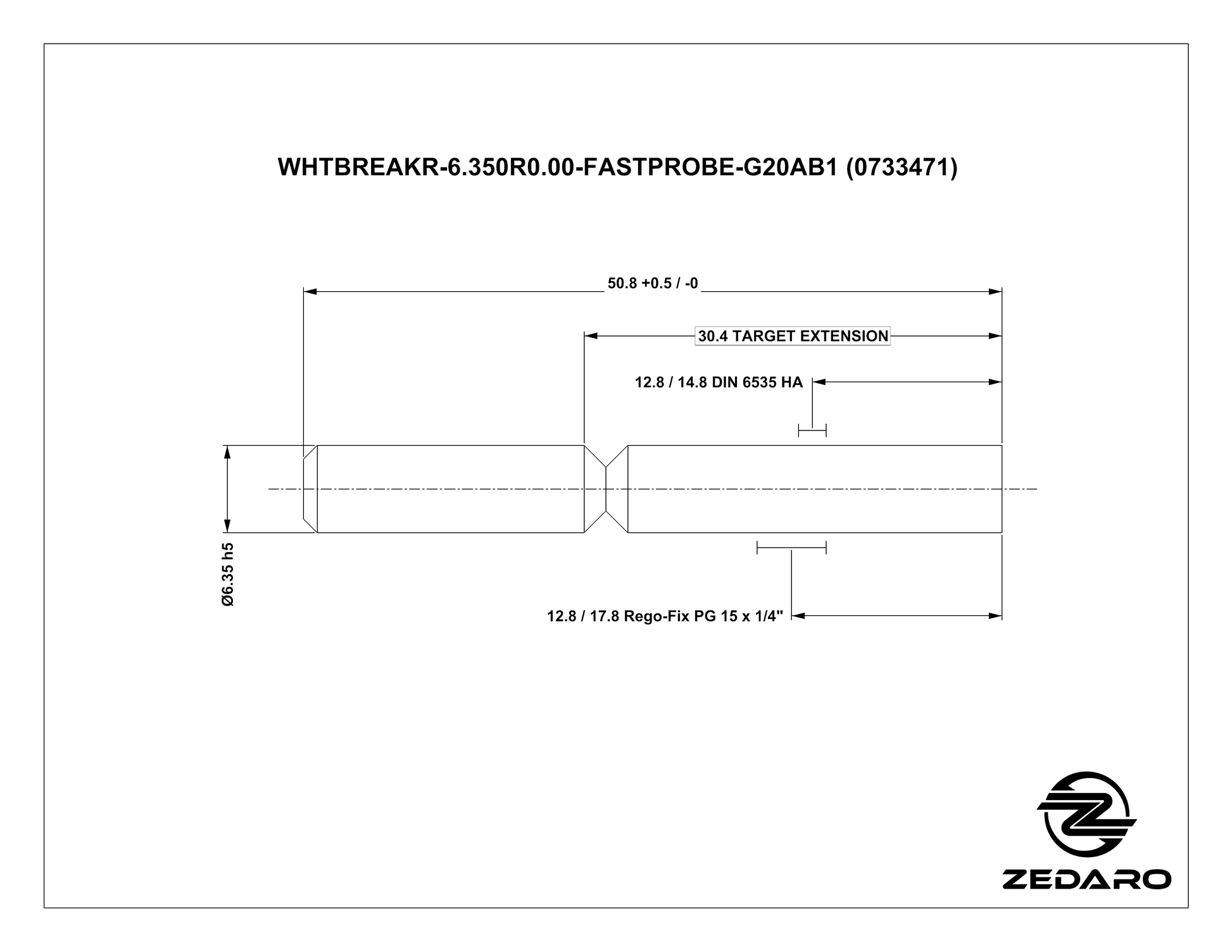

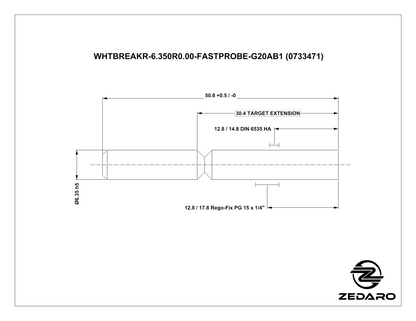

Zedaro WHTBREAKR-6.350R0.00-FASTPROBE-G20AB1 (0733471)
Zedaro WHTBREAKR-6.350R0.00-FASTPROBE-G20AB1 (0733471)
Couldn't load pickup availability
Zedaro UID: 0733471
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

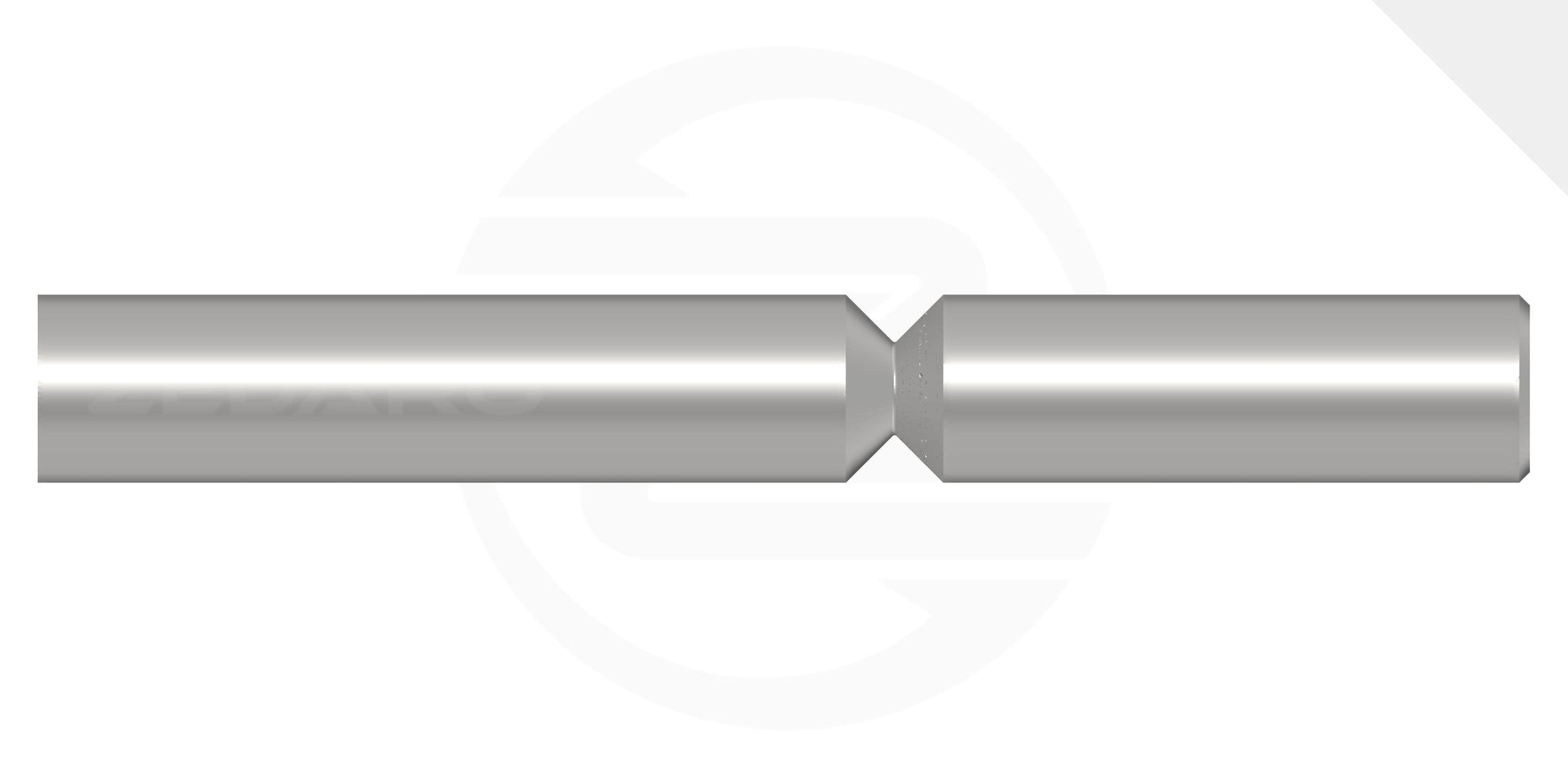

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro WHTBREAKR-6.350R0.00-FASTPROBE-G20AB1 | |
| EDP # | 0733471 | |
| Workpiece Material(s) | All Materials (White) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 25.0 g |
| Cutting Diameter | 0.2500" | 6.350 mm |
| Corner Radius | 0.0000" | 0.000 mm |
| Application | Probing (Breaker) | |
| Form | R-FLAT | |
| Shank Diameter (h6) | 0.2500" | 6.350 mm |
| Cutting Edges | 0 | |
| Tolerance Class | h9 | |
| Length of Cut | 0.0000" | 0.000 mm |
| Overall Length | 2.0000" | 50.800 mm |
| Reach | 0.9843" | 25.000 mm |
| Minimum Extension | 1.2402" | 31.500 mm |
| Maximum Extension | 1.5000" | 38.100 mm |
Product Features:
- The 'White' line of tooling is reasonably suitable for any material.
- The 'Breaker' line is a special purpose high-speed probing tool used to detect incorrect part placement using a clean breaking stylus that can be easily replaced.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- This is a custom design which does not follow standard proportions.
