Zedaro GRNWIZZER-12.00R0.10-44.5HAW44.5-N37CG1 (0734950)
Zedaro GRNWIZZER-12.00R0.10-44.5HAW44.5-N37CG1 (0734950)
Couldn't load pickup availability
Zedaro UID: 0734950
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

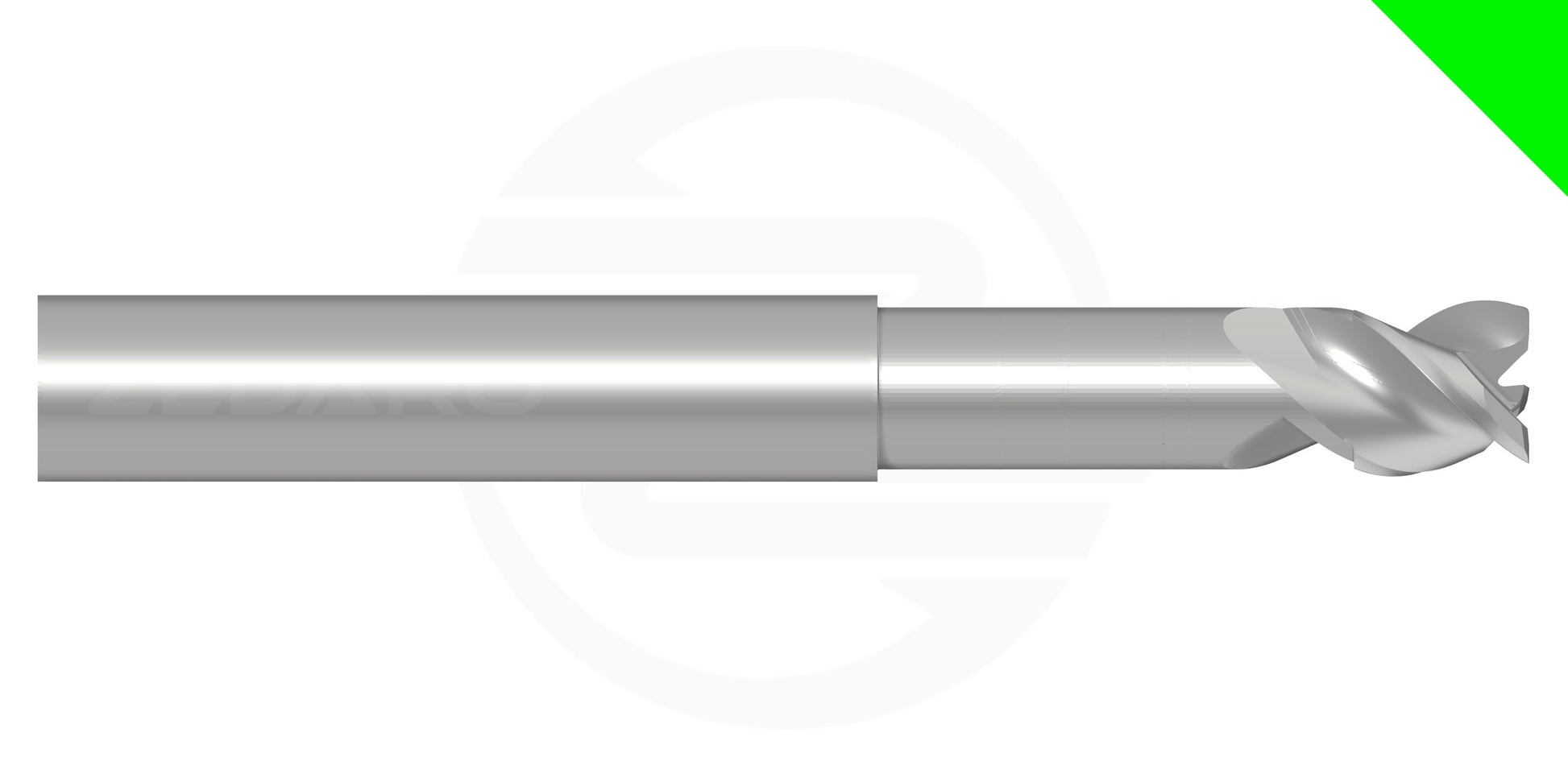

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

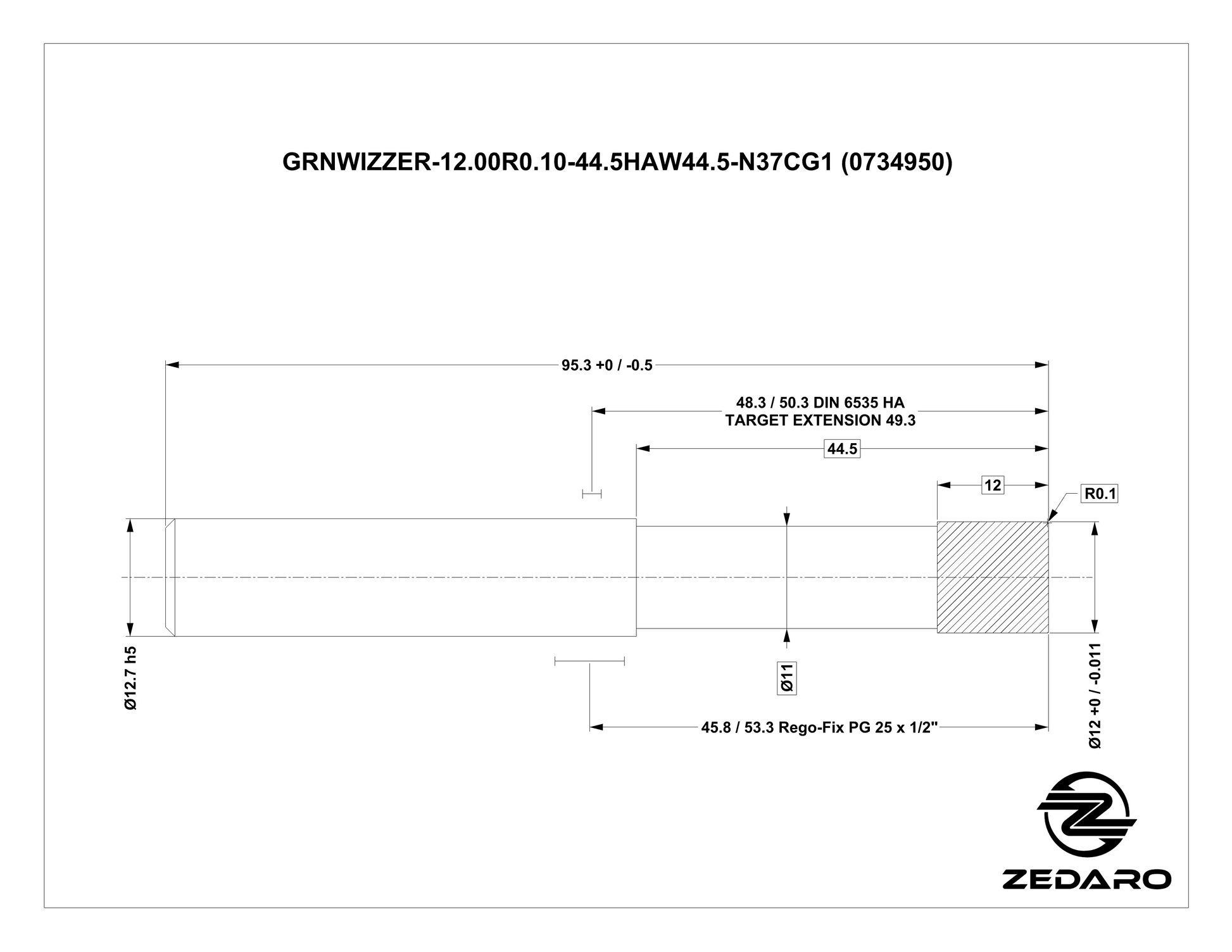

| Properties | ||
|---|---|---|
| Name | Zedaro GRNWIZZER-12.00R0.10-44.5HAW44.5-N37CG1 | |
| EDP # | 0734950 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 7.0 oz | 186 g |
| Cutting Diameter | 0.4724" | 12.000 mm |
| Corner Radius | 0.0039" | 0.100 mm |
| Application | Finish Face Milling <20k RPM (Wizzer) | |
| Form | R-TORUS | |
| Shank Diameter (h5) | 0.5000" | 12.700 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.4724" | 12.000 mm |
| Overall Length | 3.7000" | 93.980 mm |
| Reach | 1.7520" | 44.500 mm |
| Minimum Extension | 1.7520" | 44.500 mm |
| Maximum Extension | 2.7008" | 68.600 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Wizzer' line is a tight-tolerance finishing tool which is intended for facing; primarily using the face of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'HAW' refers to the bird species 'Hawk'.
