Zedaro GRNPECKER-1.820D6.00-9.00PEK16.0-G20CG1 (0735074)
Zedaro GRNPECKER-1.820D6.00-9.00PEK16.0-G20CG1 (0735074)
Quantity
Couldn't load pickup availability
Sign in to see pricing.

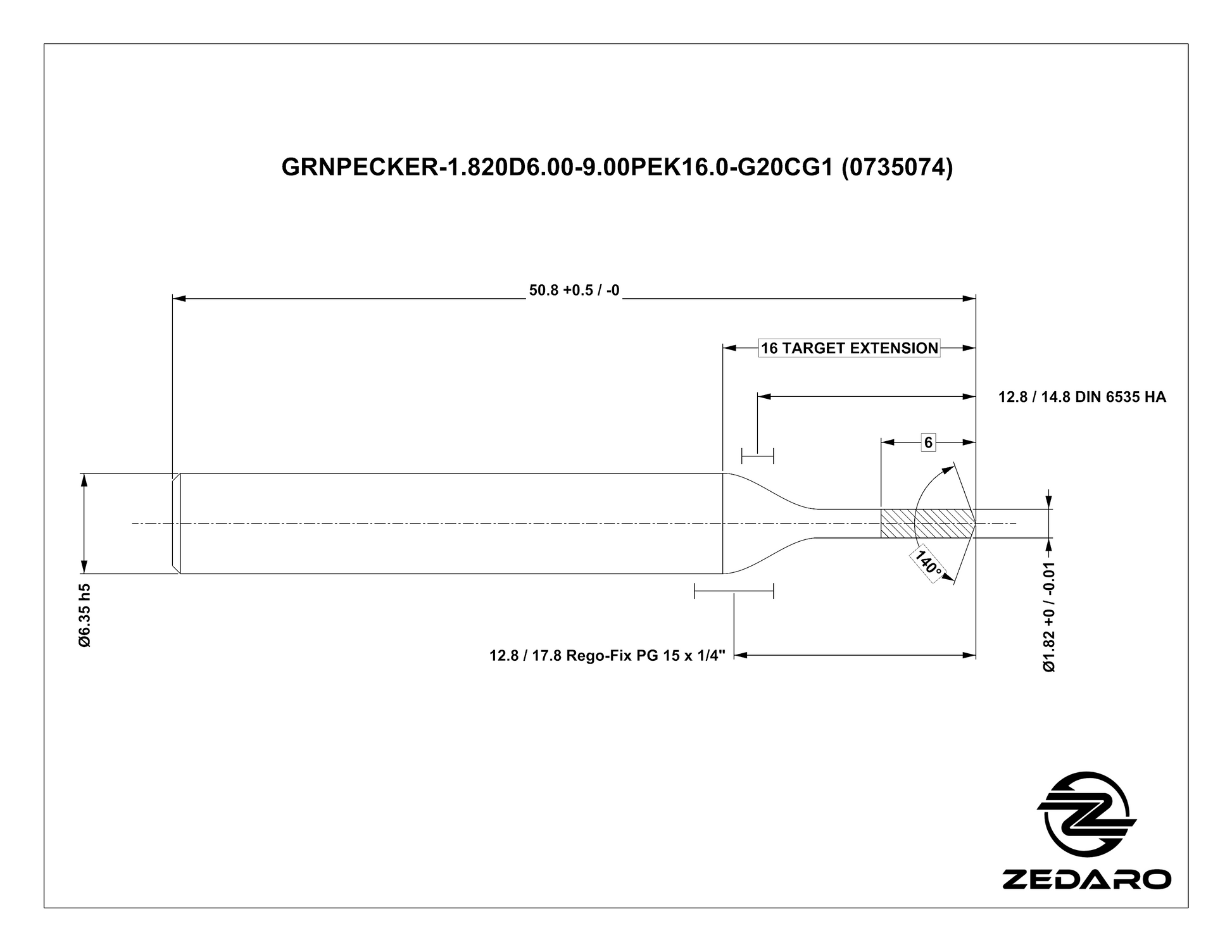

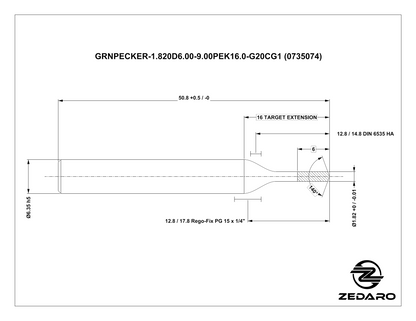

Technical Files
Drawings, DXF profiles and CAD models are available to approved
account holders.
Sign in or
request approval.
Shipping calculated at checkout.
Zedaro UID: 0735074
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

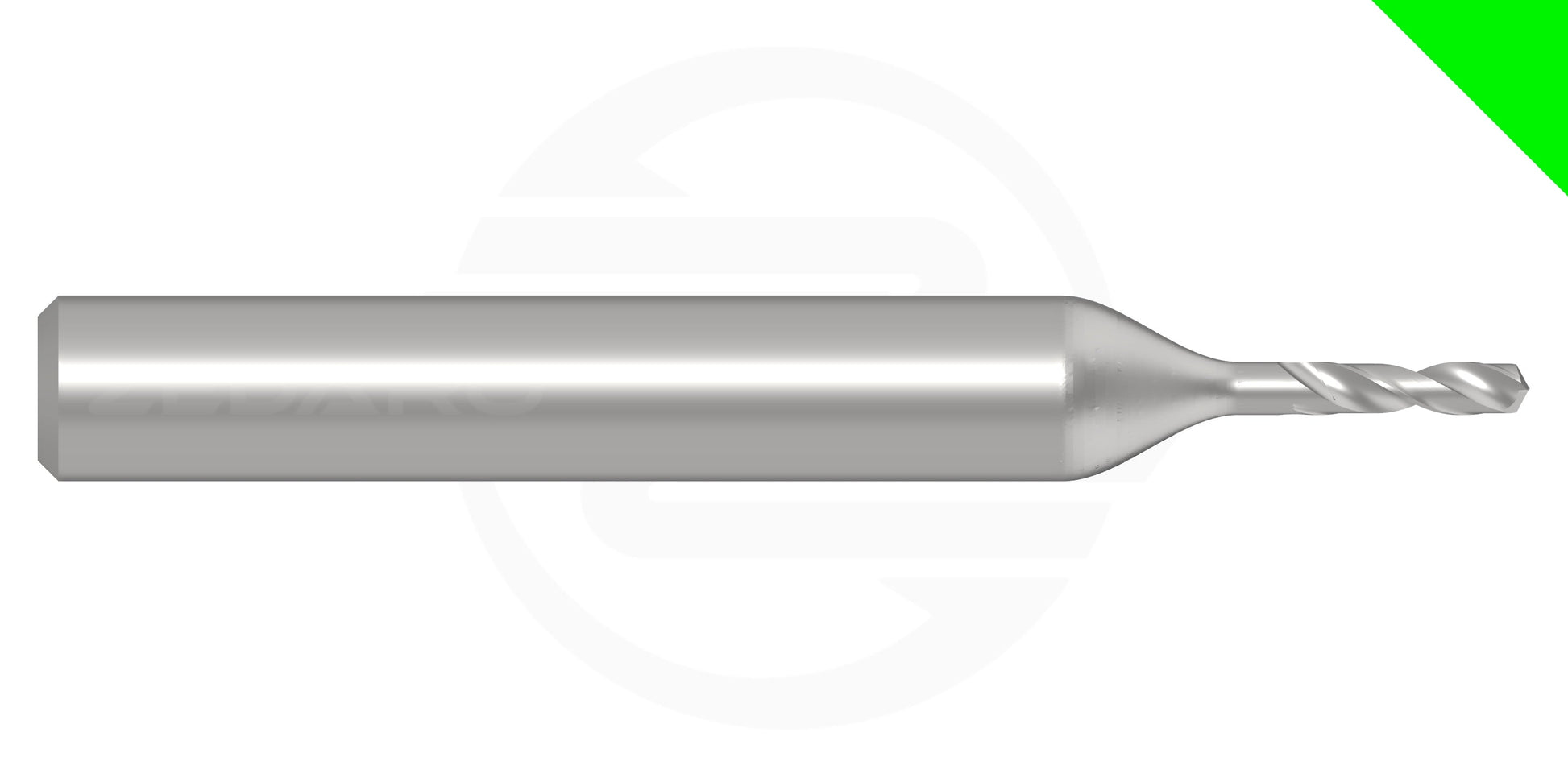

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNPECKER-1.820D6.00-9.00PEK16.0-G20CG1 | |
| EDP # | 0735074 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 25.0 g |
| Cutting Diameter | 0.0717" | 1.820 mm |
| Cutting Length | 0.2362" | 6.000 mm |
| Application | General Drilling, Tapping (Pecker) | |
| Form | Drill | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.2362" | 6.000 mm |
| Overall Length | 2.0000" | 50.800 mm |
| Reach | 0.3543" | 9.000 mm |
| Minimum Extension | 0.6299" | 16.000 mm |
| Maximum Extension | 1.5000" | 38.100 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Pecker' line is for general drilling and tapping.
- 'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
- The code 'PEK' refers to the bird species 'Woodpecker'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
