Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Material Number: 14443355
Ceratizit Article Number: 7143040500
Ceratizit Komet Number (Unpacked): 14443 355
Ceratizit Komet Number (Packed): 14443355
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

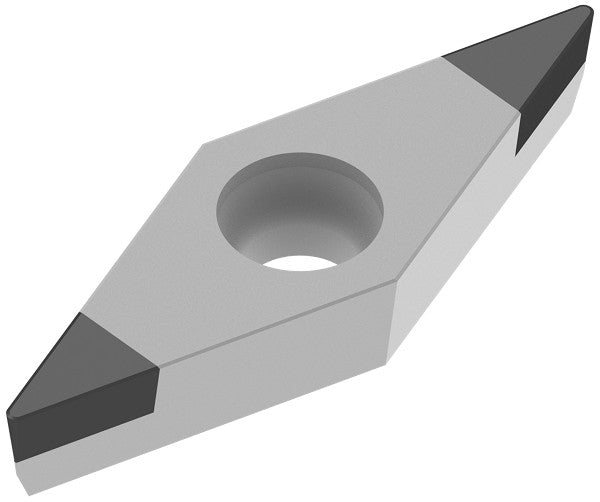

| Name | Ceratizit VCGW 160404FN_B3 CTBH21U Indexible Insert 14443355 | |
| EDP # | 0735343 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 0.4 oz | 11.2 g |
| designation | 160404FN | |
| Corner radius / RE | 0.0157' | 0.400 mm |
| Cutting edge length / L | 0.6535' | 16.600 mm |
| Insert thickness / S | 0.1874' | 4.760 mm |
| Fixing hole diameter / D1 | 0.1732' | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748' | 9.520 mm |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1260' | 3.200 mm |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
