Description
Ceratizit Article Number: 71165312
Ceratizit Material Number: 12551273
Ceratizit Komet Number (Unpacked): 12551 273
Ceratizit Komet Number (Packed): 12551273
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

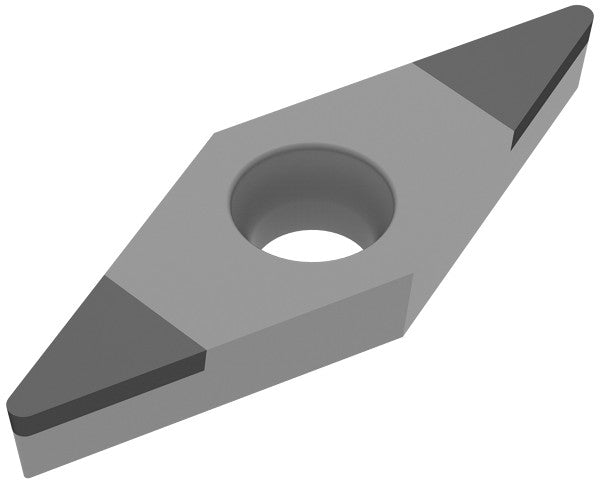

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VCGW 110308EN_B3 CTBH40C CoreLine - - 71165312 | |
| EDP # | 0735406 | |
| Weight (1 pc.) | 0.1 oz | 3.6 g |
| designation | 110308EN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.4370" | 11.100 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.1142" | 2.900 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 222EN | ||
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.0984" | 2.500 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | VCGW 110308EN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
