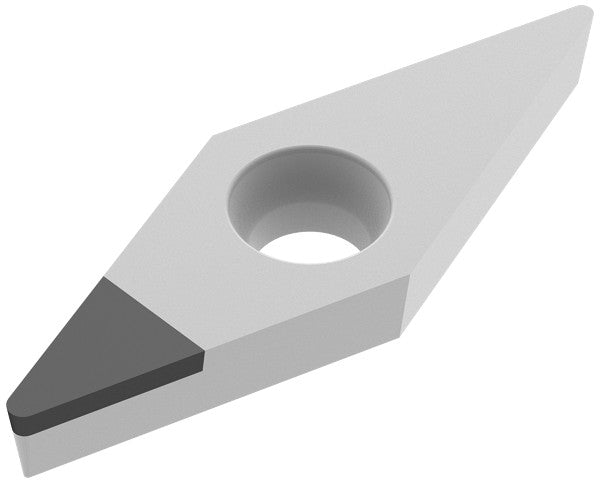

Ceratizit VCGW 110302TN-012E_A5 CTBH40U CoreLine 71160900 (0735463)
Ceratizit VCGW 110302TN-012E_A5 CTBH40U CoreLine 71160900 (0735463)
Couldn't load pickup availability
Ceratizit Article Number: 71160900
Ceratizit Material Number: 12550848
Ceratizit Komet Number (Unpacked): 12550 848
Ceratizit Komet Number (Packed): 12550848
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VCGW 110302TN-012E_A5 CTBH40U CoreLine 71160900 | |
| EDP # | 0735463 | |
| Weight (1 pc.) | 0.1 oz | 3.4 g |
| designation | 110302TN | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.4370" | 11.100 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.1142" | 2.900 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 22.5TN | ||
| support chamfer angle / GB | 25 ° | |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1850" | 4.700 mm |
| Face land width / BN | 0.0047" | 0.120 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | VCGW 110302TN | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
