Description
Ceratizit Article Number: 7103633829
Ceratizit Material Number: 12419997
Ceratizit Komet Number (Unpacked): 12419 997
Ceratizit Komet Number (Packed): 12419997
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

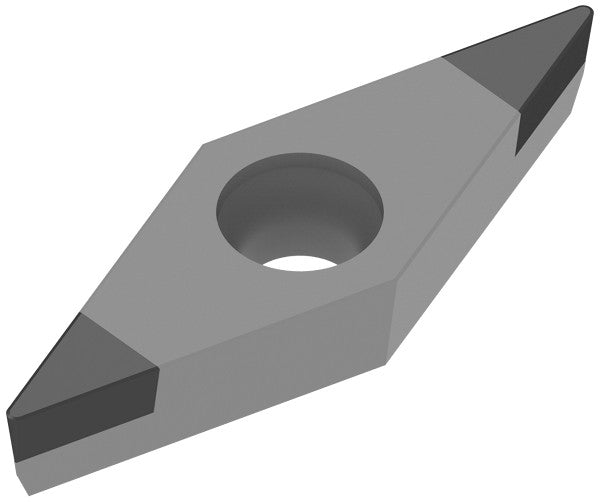

| Name | Ceratizit VCGW 160404SN-014E_B3 CTBH15U CoreLine 7103633829 | |
| EDP # | 0735467 | |
| Weight (1 pc.) | 0.1 oz | 3.0 g |
| designation | 160404SN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.6535" | 16.600 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| 331SN | ||
| support chamfer angle / GB | 25 ° | |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1220" | 3.100 mm |
| Face land width / BN | 0.0055" | 0.140 mm |
| Size | 16.0000" | 406.400 mm |
| Designation | VCGW 160404 | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH15U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
