Description
Ceratizit Article Number: 7103532029
Ceratizit Material Number: 12419974
Ceratizit Komet Number (Unpacked): 12419 974
Ceratizit Komet Number (Packed): 12419974
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.

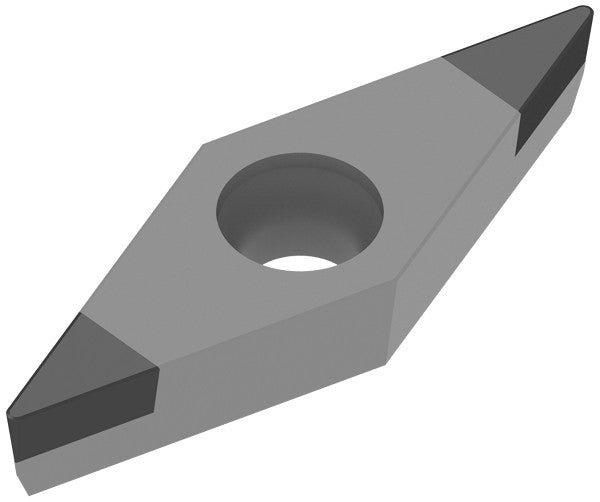

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VCGW 110302SN-014E_B3 CTBH15C CoreLine 7103532029 | |
| EDP # | 0735471 | |
| Weight (1 pc.) | 0.1 oz | 3.0 g |
| designation | 110302SN | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.4370" | 11.100 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.1142" | 2.900 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 22.5SN | ||
| support chamfer angle / GB | 25 ° | |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1339" | 3.400 mm |
| Face land width / BN | 0.0055" | 0.140 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | VCGW 110302 | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH15C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
