Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 7103502400
Ceratizit Material Number: 12419982
Ceratizit Komet Number (Unpacked): 12419 982
Ceratizit Komet Number (Packed): 12419982
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

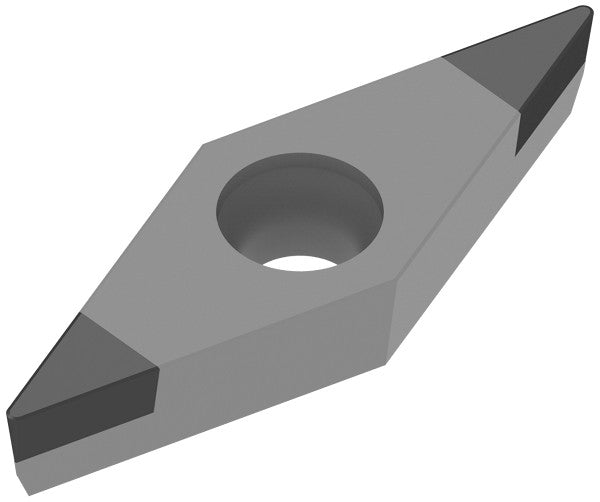

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VCGW 110308EN_B3 CTBH15C 7103502400 | |
| EDP # | 0735479 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 1.5 g |
| designation | 110308EN | |
| Corner radius / RE | 0.0315' | 0.800 mm |
| Cutting edge length / L | 0.4370' | 11.100 mm |
| Insert thickness / S | 0.1252' | 3.180 mm |
| Fixing hole diameter / D1 | 0.1142' | 2.900 mm |
| Inscribed circle diameter / IC | 0.2500' | 6.350 mm |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.0984' | 2.500 mm |
| Insert index count / NOI | 2 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBH15C | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
