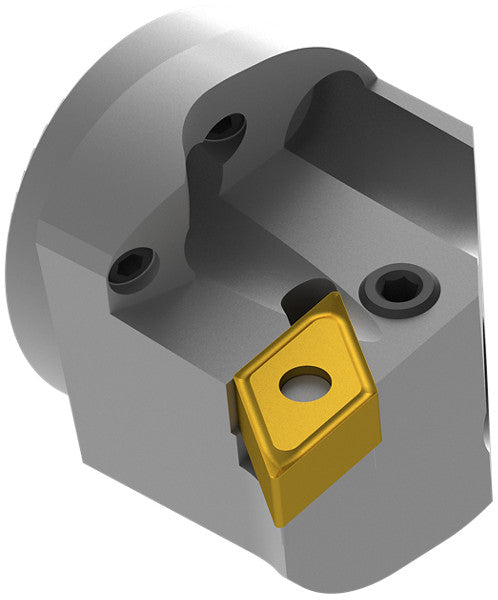

Ceratizit WK32.WSK.PDUNL.32-15 CoreLine 93° Exchangeable Cutting Head w/ Lever Clamping MaxiChange 8416113200 (0735569) [SKU:8416113200]

Ceratizit WK32.WSK.PDUNL.32-15 CoreLine 93° Exchangeable Cutting Head w/ Lever Clamping MaxiChange 8416113200 (0735569) [SKU:8416113200]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 8416113200

Ceratizit Material Number: 8416113200

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit WK32.WSK.PDUNL.32-15 CoreLine 93° Exchangeable Cutting Head w/ Lever Clamping MaxiChange 8416113200
EDP # 0735569
Workpiece Material(s) Hard/Tool Steel (Grey)
Product System MaxiChange

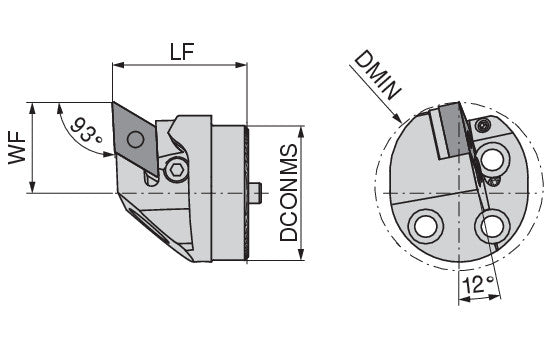

Functional width / WF 0.8661" 22.000 mm
Minimum bore diameter / DMIN 1.5748" 40.000 mm
Functional length / LF 1.3780" 35.000 mm
Insert DN.. 1504 / 1506
torque moment 5 Nm
Mounting spigot diameter / DCONMS 1.2598" 32.000 mm
Version Left


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
