Zedaro YELGRAZER-4.000V24.0-32.0MAL35.6-J30CE1 (0735735)
Zedaro YELGRAZER-4.000V24.0-32.0MAL35.6-J30CE1 (0735735)
Couldn't load pickup availability
Zedaro UID: 0735735
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

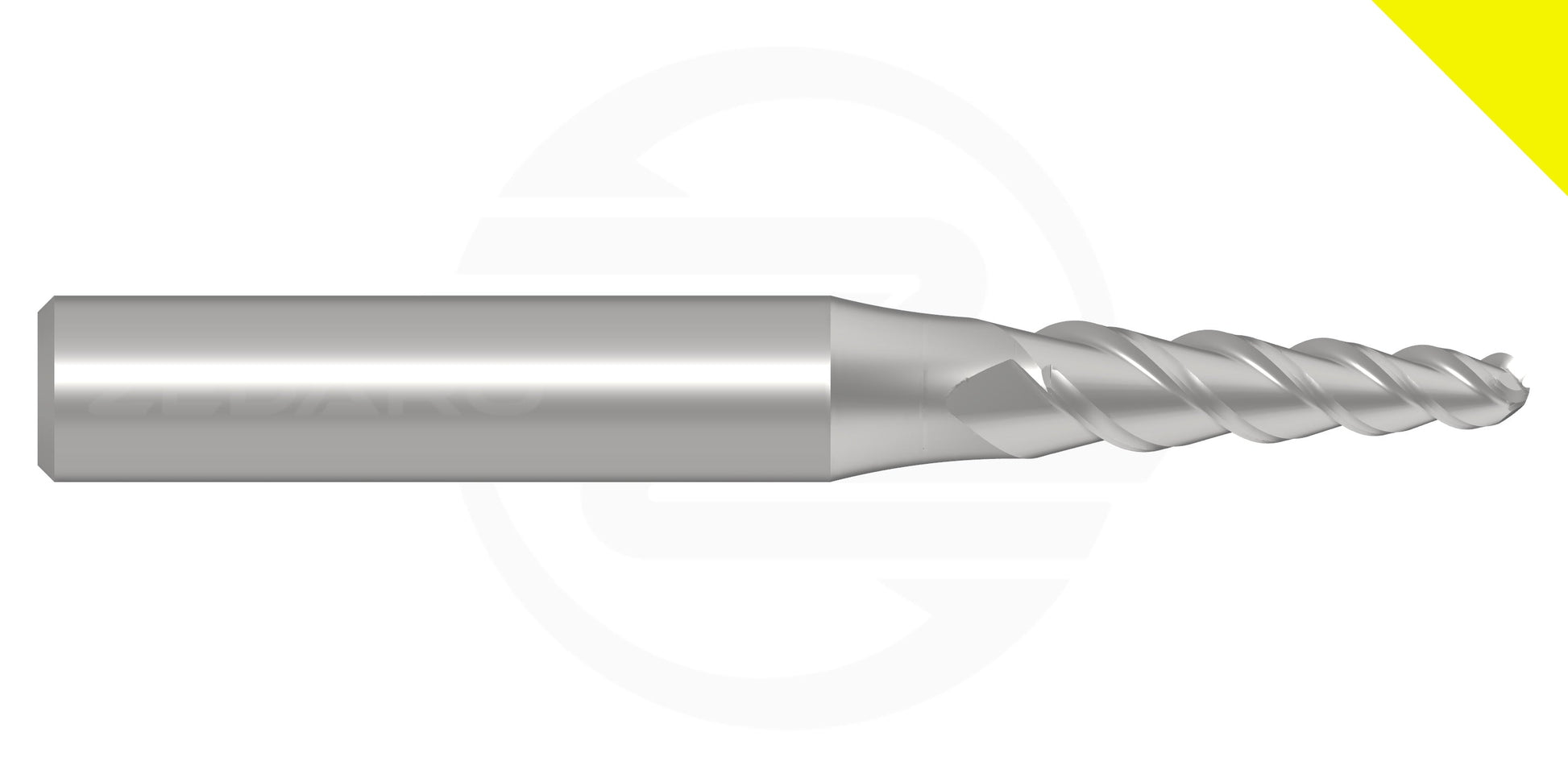

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro YELGRAZER-4.000V24.0-32.0MAL35.6-J30CE1 | |
| EDP # | 0735735 | |
| Workpiece Material(s) | Stainless Steel (Yellow) | |
| Weight (1 pc.) | 3.0 oz | 84.0 g |
| Cutting Diameter | 0.1575" | 4.000 mm |
| Cutting Length | 0.9449" | 24.000 mm |
| Application | Finish 3D Milling <20k RPM (Grazer) | |
| Form | Tapered Ball | |
| Shank Diameter (h5) | 0.3750" | 9.520 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.9449" | 24.000 mm |
| Overall Length | 3.0000" | 76.200 mm |
| Reach | 1.2598" | 32.000 mm |
| Minimum Extension | 1.4016" | 35.600 mm |
| Maximum Extension | 2.2520" | 57.200 mm |
Product Features:
- The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
- The 'Grazer' line is a tight-tolerance 3D finishing tool intended for machine tools with spindle speeds up to 20K rpm and which can be used for almost anything.
- 'V' form tools are excellent for milling in confined areas and have optimal strength and stiffness properties for deep slotting and flanking. Typically combined with 5-axis simultaneous tool paths in the aerospace industry and for other complex forms, they are also commonly used on 3-axis machines for generating drafted walls; especially in the mold making industry.
- The code 'MAL' refers to the bird species 'Mallard Duck'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
