Zedaro WHTENGRVR-9.525C90.0-50.8PUF50.8-J35CC1 (0735882)
Zedaro WHTENGRVR-9.525C90.0-50.8PUF50.8-J35CC1 (0735882)
Quantity
Couldn't load pickup availability
Sign in to see pricing.
Technical Files
Drawings, DXF profiles and CAD models are available to approved
account holders.
Sign in or
request approval.
Shipping calculated at checkout.
Zedaro UID: 0735882
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

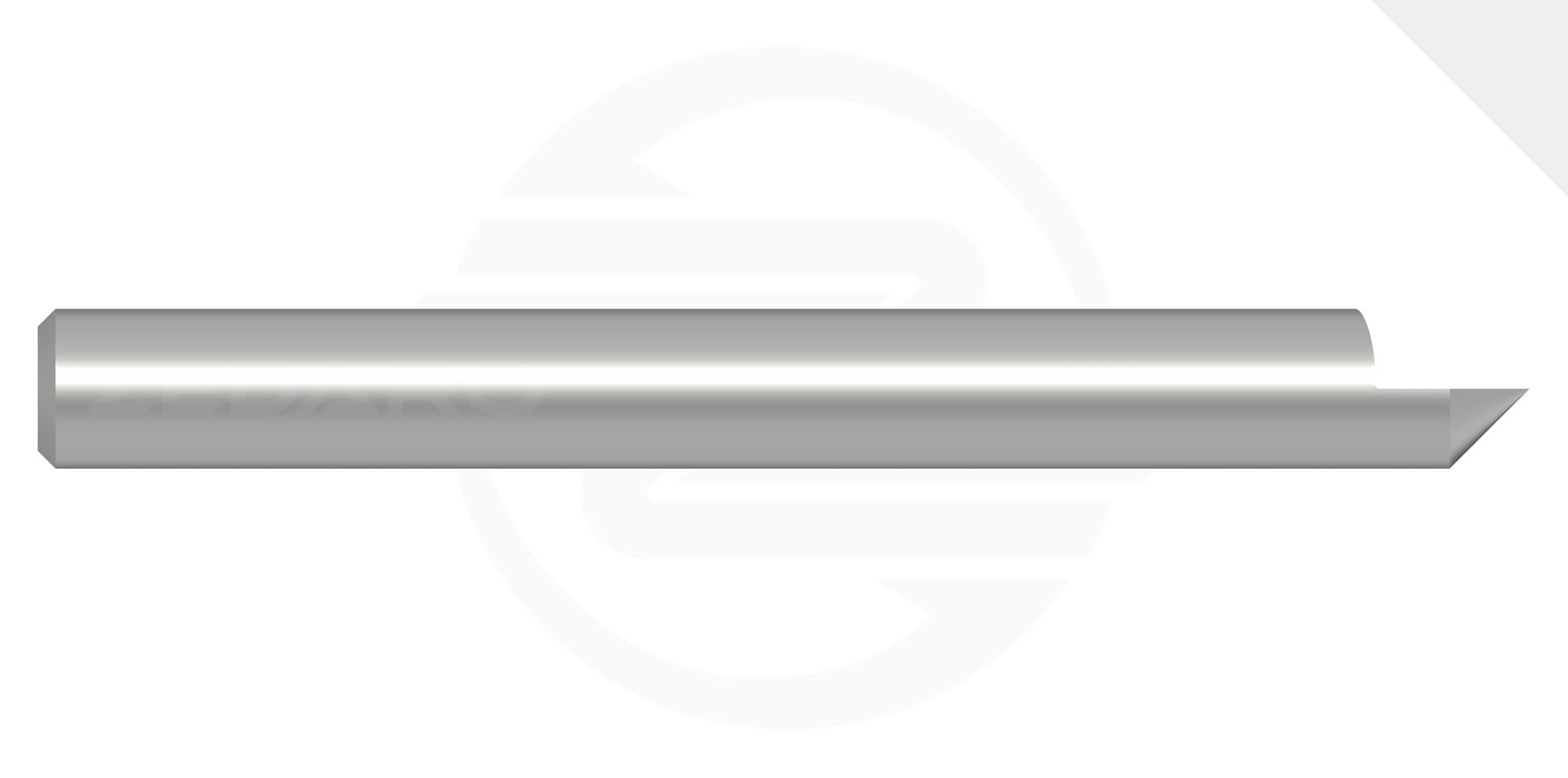

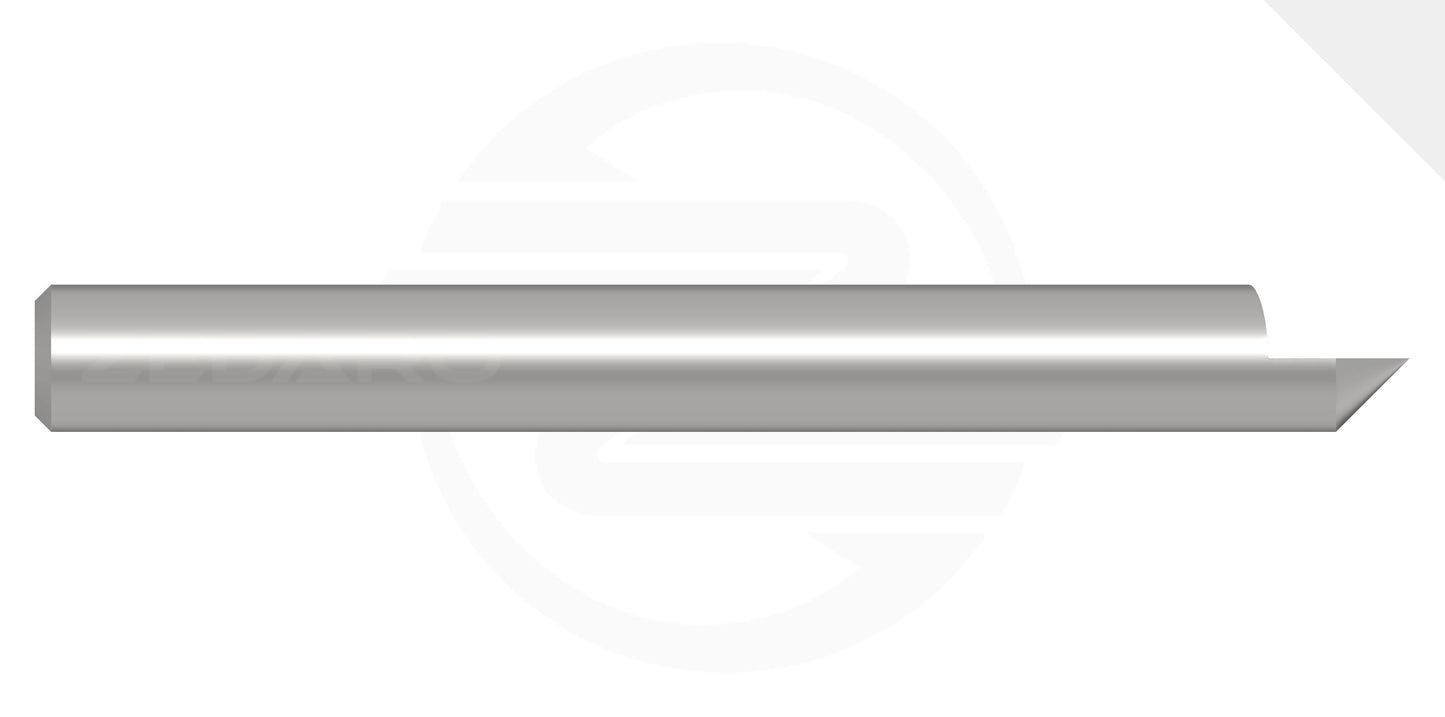

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

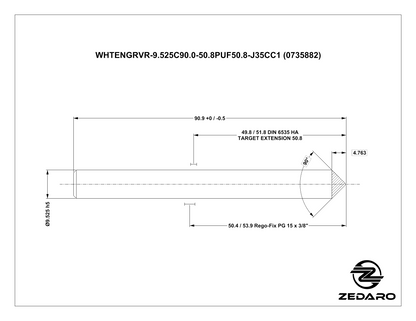

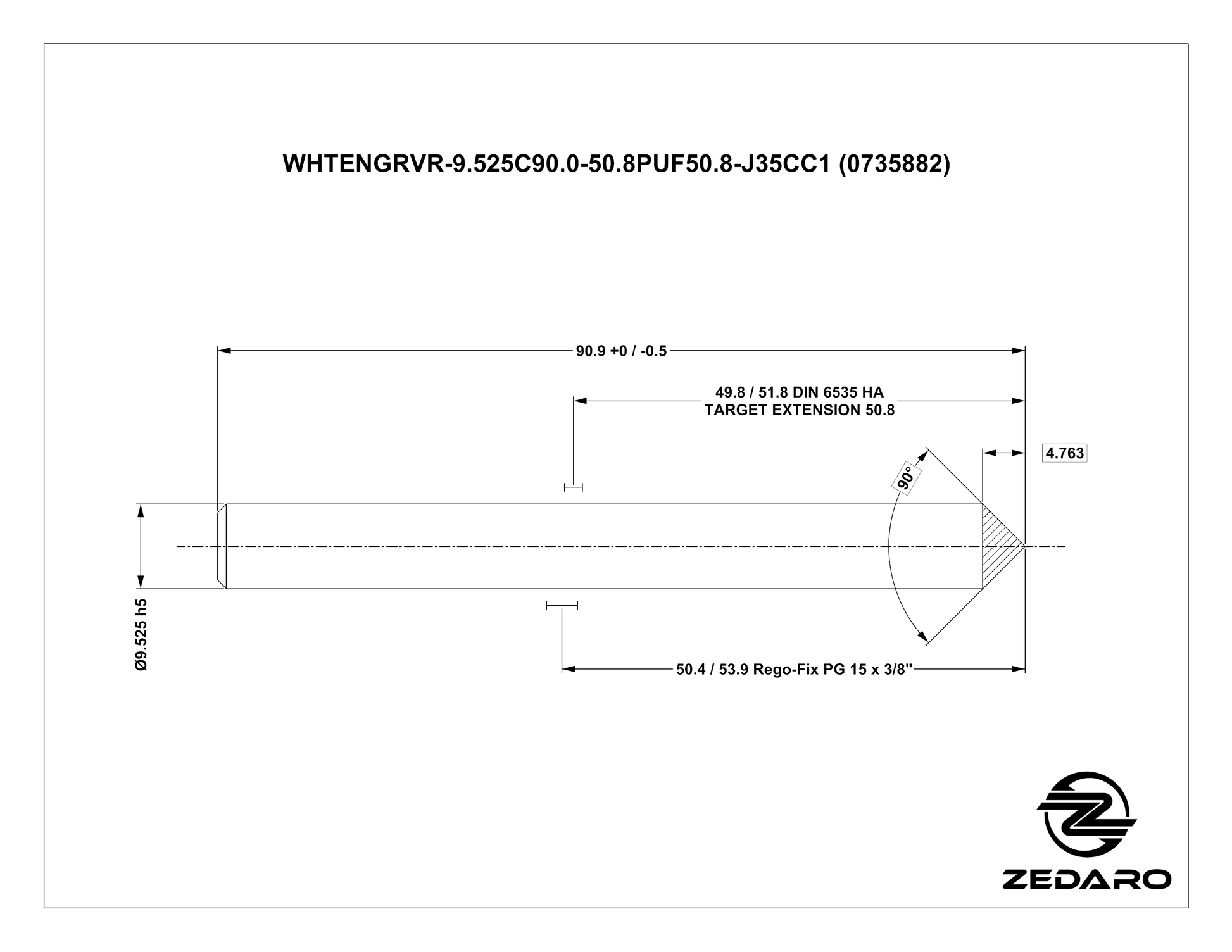

| Properties | ||
|---|---|---|
| Name | Zedaro WHTENGRVR-9.525C90.0-50.8PUF50.8-J35CC1 | |
| EDP # | 0735882 | |
| Workpiece Material(s) | All Materials (White) All Materials (White) | |
| Weight (1 pc.) | 3.0 oz | 99.0 g |
| Cutting Diameter | 0.3750" | 9.525 mm |
| Total Tip Angle | 3.5433" | 90.000 mm |
| Application | Finish Chamfer/Deburr/Engrave (Engraver) | |
| Form | Chamfer | |
| Shank Diameter (h5) | 0.3750" | 9.520 mm |
| Cutting Edges | 1 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.1874" | 4.760 mm |
| Overall Length | 3.5000" | 88.900 mm |
| Reach | 2.0000" | 50.800 mm |
| Minimum Extension | 2.0000" | 50.800 mm |
| Maximum Extension | 2.7520" | 69.900 mm |
Product Features:
- The 'White' line of tooling is reasonably suitable for any material.
- The 'Engraver' line is for engraving, and is also suitable for chamfering and deburring.
- 'C' form tools are for chamfering and deburring, available in a large array of tip angles.
- The code 'PUF' refers to the bird species 'Puffin'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
