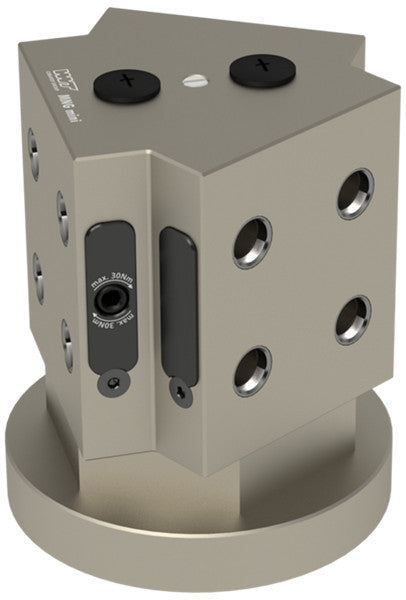

Ceratizit AST.3.3.148.171.MNGMINI CoreLine - Triangular Clamping Tower - 8091551700 (0735974) [SKU:8091551700]

Ceratizit AST.3.3.148.171.MNGMINI CoreLine - Triangular Clamping Tower - 8091551700 (0735974) [SKU:8091551700]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 8091551700

Ceratizit Material Number: 8091551700

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

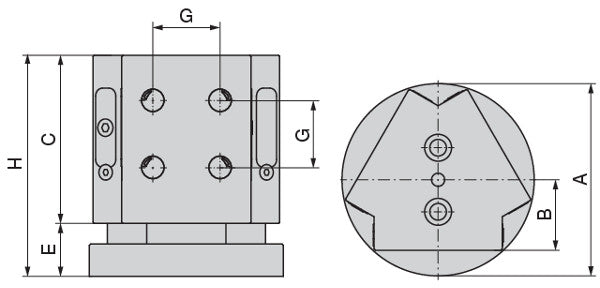

Properties
Name Ceratizit AST.3.3.148.171.MNGMINI CoreLine - Triangular Clamping Tower - 8091551700
EDP # 0735974
Product System MNG mini
A 5.8268" 148.000 mm
Shank width (B) 2.1654" 55.000 mm
C 5.1181" 130.000 mm
E 1.6142" 41.000 mm
F H7 0.4724" 12.000 mm
G 2.0472" 52.000 mm
Shank height (H) 6.7323" 171.000 mm
I ±0,015 2.0472" 52.000 mm
K ±0,015 3.9370" 100.000 mm
J3 0.7480" 19.000 mm
O ±0,015 2.5984" 66.000 mm
J2 0.5118" 13.000 mm
J1 H7 0.9843" 25.000 mm
D6 1.9685" 50.000 mm
J1 - Toleranz H7


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
