Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Shredder' line is a general purpose high-speed roughing and finishing tool designed for machine tools capable of spindle speeds greater than 20K rpm.

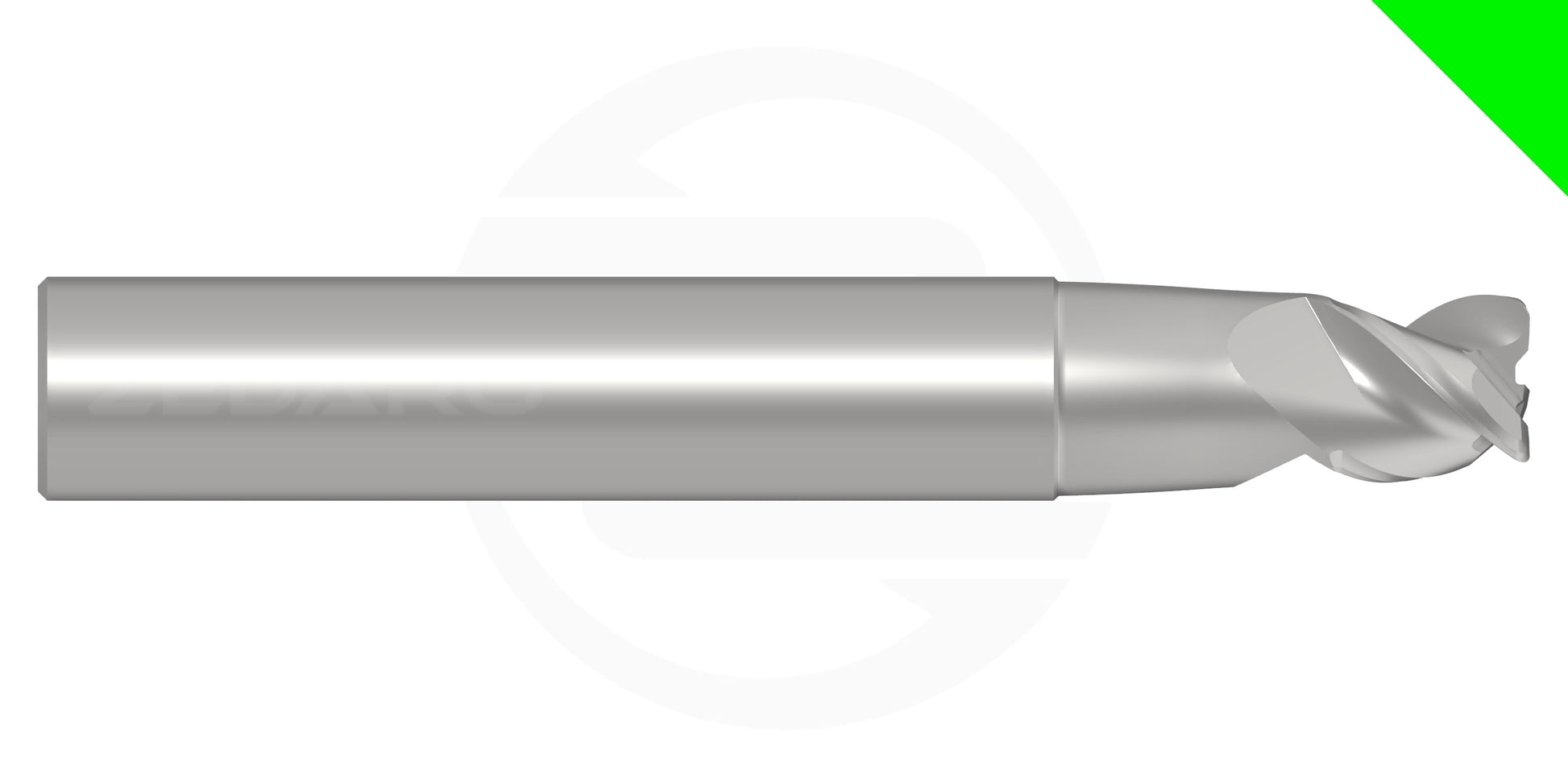

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.

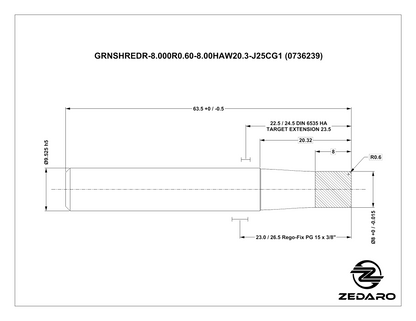

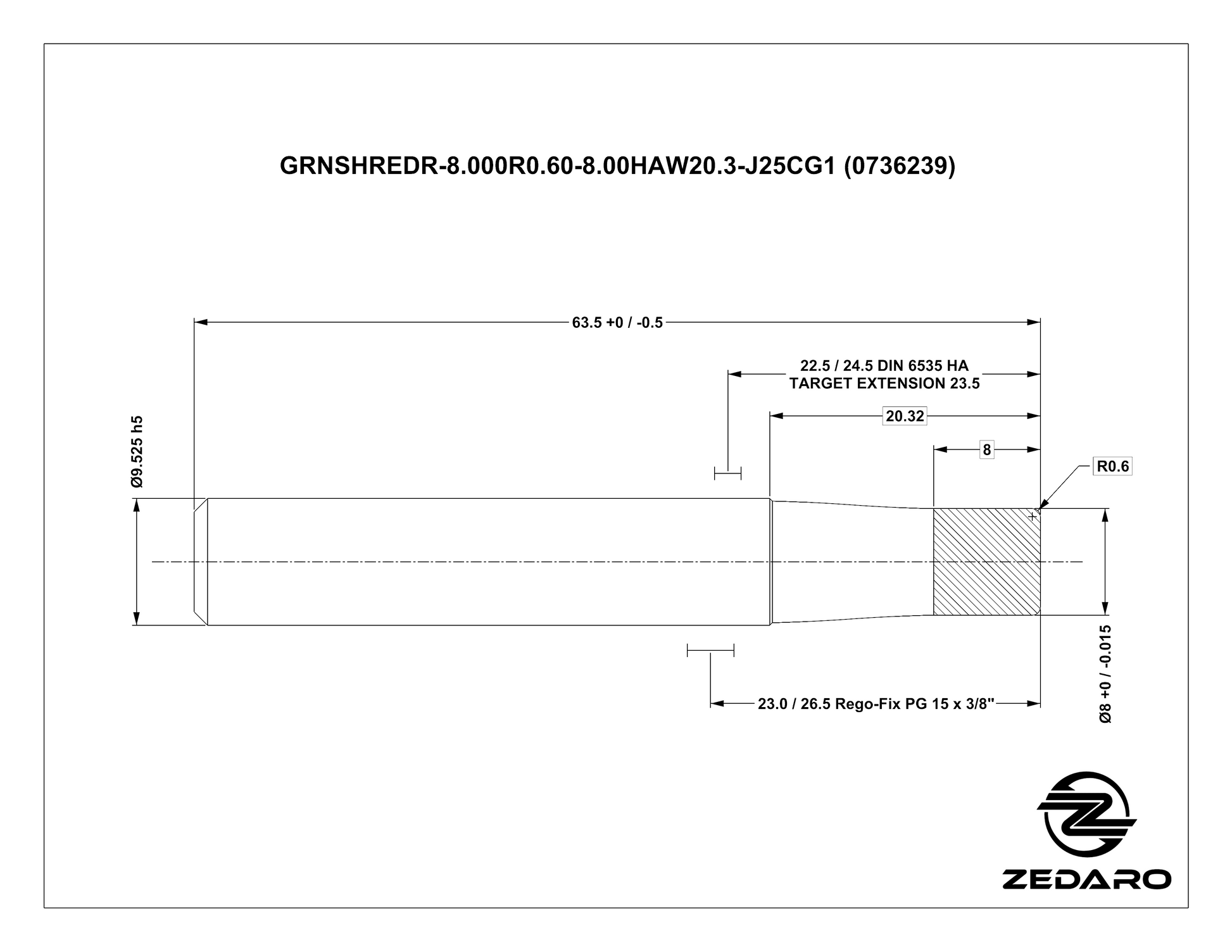

| Tool Properties | ||
|---|---|---|
| Name | GRNSHREDR-8.000R0.60-8.00HAW20.3-J25CG1 | |
| EDP # | 0736239 | |
| Material | Wrought Aluminum | Application | General Milling >20k RPM (Shredder) |
| Form | End Mill - Bull / Rounded Corner | |
| Cutting Diameter | 0.3150" | 8.000 mm |
| Corner Radius | 0.0236" | 0.600 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.3150" | 8.000 mm |
| Reach | 0.3150" | 8.000 mm |
| Minimum Extension | 0.8" | 20.3 mm |
| Maximum Extension | 1.8" | 44.5 mm |
| Shank Diameter h6 | 0.3750" | 9.525 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h7 | |
